-Measurement parameters: ESR, DCV, X, Z, , L
-Basic accuracy:
+Resistance: 0.3%
+Voltage: 0.05%
+Inductance:1%
-Measurement range:
+Resistance:1 ～ 3k;
+Voltage:100V～60V;
+Inductance :10nH~1H
-Signal Source:
+Measurement current frequency:1kHz;
+Open circuit voltage:<20mV;
+Test current:<10mA
-Range:
+Six different ranges-30m,300m,3,30,300,3K;
+Auto and manual modes are available in each range
-Measuring speed: 2 meas/sec.,8 meas/sec.,25 meas/sec.
-Result display: Direct read,ABS, %, , sorting results
-Maximum display value:
+Resistance:32,000;
+Voltage:60,000
- Power supply
+Voltage:198VAC～240VAC;
+Frequency: 47Hz～63Hz;
+Power: max 15VA
-Dimension & weight: 385mm(L)x249mm(W)x102mm(D);
-Weight: 3.5kg

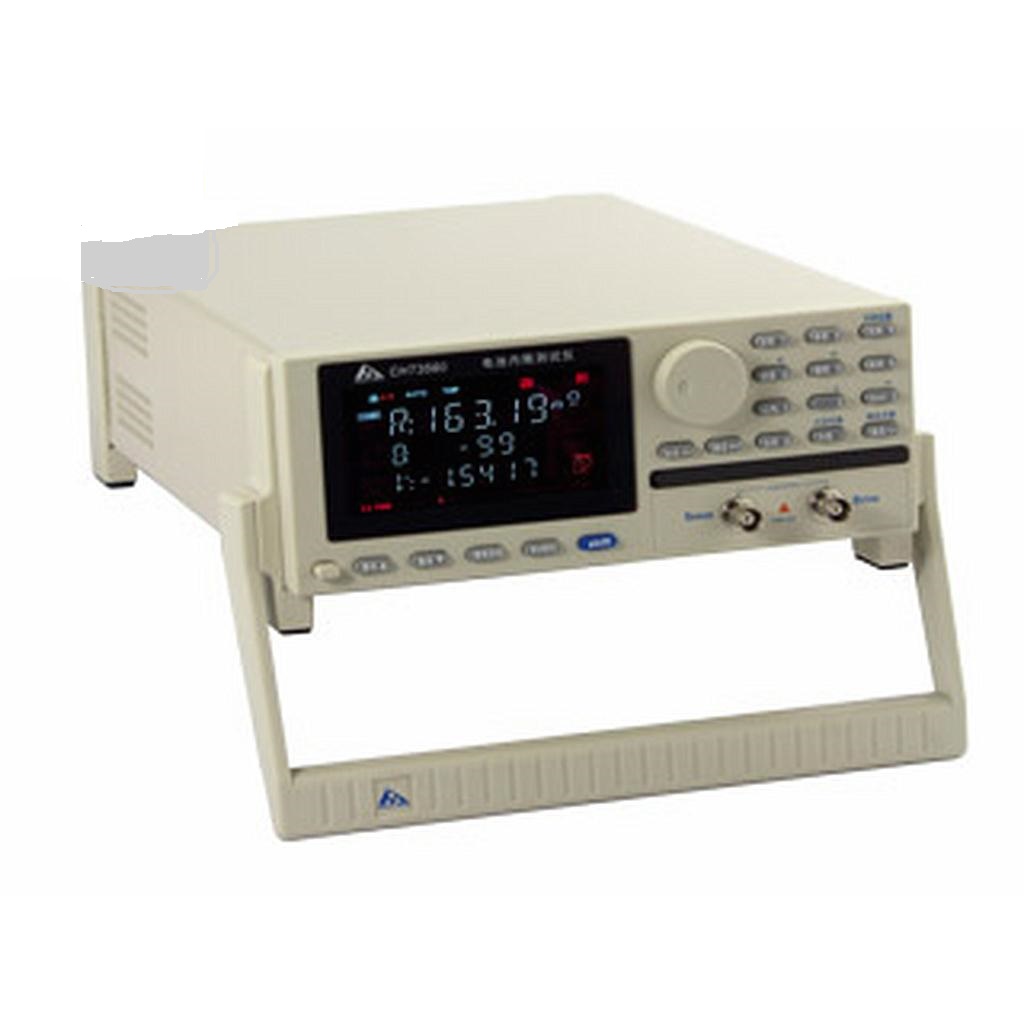

| CHT3560 battery tester is used to measure the internal resistance and voltage of batteries. The 3560 is applied to simultaneously measure the internal resistance and voltage of batteries and comparison of battery internal resistance and open-circuit voltage. Equipment with its standard features RS232C and hander interfaces, CHT3560 offers automatic measurement on batteries and check the battery deterioration fast and precisely. CHT3560 can be used for product sorting delivery inspection in battery production lines. CHT3560 main functions are compatible with HIOKI 3560 and Agilent 4338B.It offers high measurement speed and good stability. |
|
Model |
CHT3560 |
|
Measurement parameters |
ESR, DCV, X, Z, θ, L |
|
Basic accuracy |
Resistance: 0.3% Voltage: 0.05% Inductance:1% |
|
Measurement range |
Resistance:1μΩ ～ 3kΩ; Voltage:100μV～60V;Inductance :10nH~1H |
|
Signal Source |
Measurement current frequency:1kHz; Open circuit voltage:<20mV;Test current:<10mA |
|
Range |
Six different ranges-30mΩ,300mΩ,3Ω,30Ω,300Ω,3KΩ; |
|
Auto and manual modes are available in each range |
|
|
Measuring speed |
2 meas/sec.,8 meas/sec.,25 meas/sec. |
|
Result display |
Direct read, ΔABS, Δ%, θ, sorting results |
|
Maximum display value |
Resistance:32,000; Voltage:60,000 |
|
Calibration |
Short-circuit reset for all ranges; REL function |
|
Comparator |
30 set of data records, NG-LO, GD-IN, NG-HI display and output. Beeper is adjustable. |
|
Trigger mode |
Internal/manual/external trigger |
|
Interface |
RS-232C, Handler (PLC interface) |
|
Protocol |
SCPI, MODEBUS(optional) |
|
Power supply |
Voltage:198VAC～240VAC;Frequency: 47Hz～63Hz; Power: max 15VA |
|
Dimension & weight |
385mm(L)x249mm(W)x102mm(D); Weight: 3.5kg |
|
Accessories |
CHT9350 Kelvin test wire,CHT9800RS232C interface cable, |
|
Options |
CHT9360 test probe |
|
Others |
Test leads damage detection function, four-color VFD display, keypad lock and data hold function |
