-Measurement parameters: ESR,θ
-Basic accuracy: Resistance: 0.5%
-Measurement range: Resistance:10μΩ～3kΩ
-Signal Source:
+Measurement current frequency:1kHz;
+Open circuit voltage:<20mV;Test current:<10mA
-Range:
+Six different ranges-30mΩ,300mΩ,3Ω,30Ω,300Ω,3KΩ;
+Auto and manual modes are available in each range
-Measuring speed: 2 meas/sec., 8 meas/sec., 25 meas/sec.
-Result display: Direct read, ΔABS,Δ%,θ, sorting results
-Maximum display value: Resistance:32,000
-Calibration: Short-circuit reset for all ranges; REL function
-Comparator: 30 set of data records,NG-LO, GD-IN, NG-HI display and output. Beeper is adjustable.
-Trigger mode: Internal/manual/optional external trigger
-Interface: RS-232C
-Power supply:
+Voltage:198VAC～240VAC;
+Frequency: 47Hz～63Hz;
+Power: max 15VA
-Dimension : 385 mm (L)x249mm (W)x102mm (D);
-Weight: 3.5kg

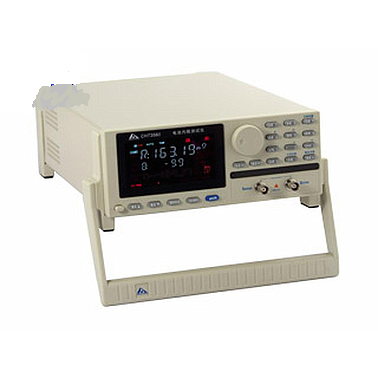

| CHT3551 is a high-precision, high-stability internal resistance of the battery Meter.The main battery internal resistance and battery voltage. This product can simultaneously measure the resistance and voltage and to compare battery internal resistance and open-circuit voltage.The CHT3560 standard RS232C and HANDLER interface automated measurement fast and accurate judgment the battery deterioration of the situation, sorting products suitable for battery assembly line and factory inspection. Low resistance characteristics can be used to characterize the mechanical and electrical components down low current test conditions. The main performance compatible Hioki HIOKI 3560 and Agilent Agilent 4338B. |
|
Model |
CHT3551 |
|
Measurement parameters |
ESR,θ |
|
Basic accuracy |
Resistance: 0.5% |
|
Measurement range |
Resistance:10μΩ～3kΩ |
|
Signal Source |
Measurement current frequency:1kHz; Open circuit voltage:<20mV;Test current:<10mA |
|
Range |
Six different ranges-30mΩ,300mΩ,3Ω,30Ω,300Ω,3KΩ; |
|
Measuring speed |
2 meas/sec., 8 meas/sec., 25 meas/sec. |
|
Result display |
Direct read, ΔABS,Δ%,θ, sorting results |
|
Maximum display value |
Resistance:32,000 |
|
Calibration |
Short-circuit reset for all ranges; REL function |
|
Comparator |
30 set of data records,NG-LO, GD-IN, NG-HI display and output. Beeper is adjustable. |
|
Trigger mode |
Internal/manual/optional external trigger |
|
Interface |
RS-232C |
|
Power supply |
Voltage:198VAC～240VAC; Frequency: 47Hz～63Hz;Power: max 15VA |
|
Dimension & weight |
385 mm (L)x249mm (W)x102mm (D); Weight: 3.5kg |
|
Accessories |
CHT9350 kelvin test wire,CHT9800 RS232C interface cable |
|
Options |
CHT9360 test probe |
|
Others |
Test leads damage detection function, four-color VFD display, keypad lock and data hold function |
