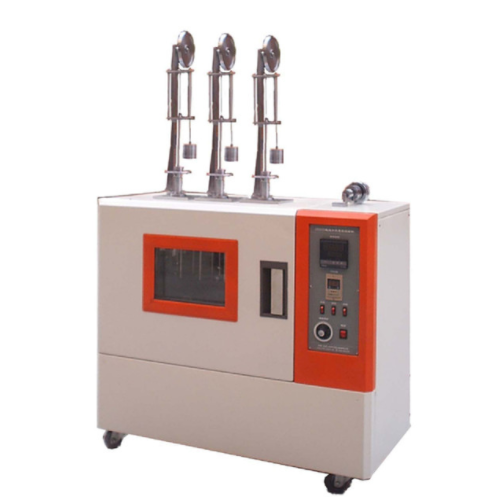

Hongdu HD-8120 ເຄື່ອງທົດສອບການປ່ຽນຮູບແບບຄວາມຮ້ອນ (±20°C~200°C)
The conditions of use
- Power supply: 220V 50Hz
- Ambient temperature: 5~35°C
- Ambient humidity: ≤85%R.H
- Power: 3.5KW
The performance indicators
- Power supply: AC 220V
- Current: MAX 15A
- Temperature range Room temperature: ±20°C~200°C temperature digital display, temperature control PID adjustment
- Temperature fluctuation: 0.5% (calculated at the highest temperature)
- Temperature uniformity: ± 1% (calculated at the highest temperature)
- Distribution error: ±3°C
- Heating time: from normal temperature to 200°C, about 40 minutes.
- Machine structure and material:
+ inner box size: length 600mm * depth 400mm * height 350mm
+ outer box size: length 1070mm * width 560mm * height 880mm
+ inner box material: SUS #304 stainless steel
+ outer box material: 1.25mm A3 steel, using electrostatic baking paint
+ insulation material: high density asbestos
+ heater: a set of solenoid heater: 220V 3.2KW
