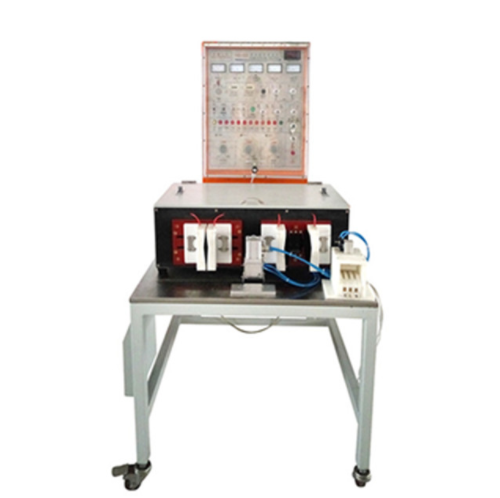

Hongdu HD-10D Plug ເຄື່ອງທົດສອບທີ່ສົມບູນແບບ (DC24V)
Polarity continuity test: Polarity test voltage: DC24V
Ground current test:
- Loop current: 0-30A Adjustable (1.5 square millimeters of wire length less than 10 meters)
- Wave shape: 50/60HZ AC sine wave
- Current correction: ±5% Within
High-pressure test:
- External high pressure: 0-5KV Adjustable
- Interelectrode high voltage: 0-3KV Adjustable
- Wave shape: 50/60HZ AC sine wave
- Transformer rated power: 500VA
- High pressure meter: 1.5 CLASS
- High voltage calibration: ±5% Within
AC/insulation resistance test:
- The output voltage: 2500V/AC
- Voltage calibration: ±5%
- Indicator header (0.4-10MΩ): ±5%
- Reference set point: 5MΩ
- Judgment accuracy: ±5%
DC/insulation resistance
- DC/insulation test voltage: 500V
- Reference set point: 100MΩ
