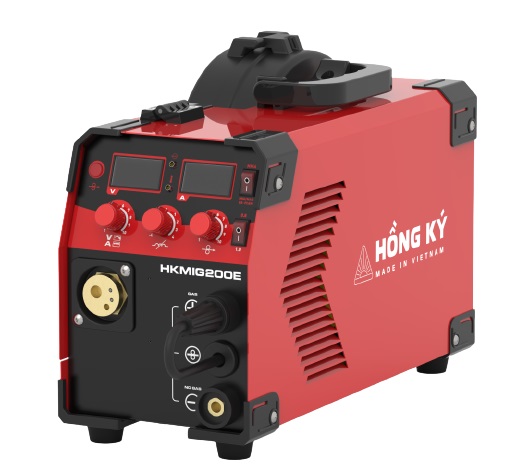

- MIG welding without gas with cored wire
- MIG welding using CO2 gas with solid core wire
- Stick welding (MMA)
- Replaceable MIG welding gun
- Output current 160A
- Using solid core welding wire using CO2 gas - Steel
- Using non-gas-based flux-cored welding wire – Steel
- MIG welding 0.8 - 1.0mm (160A)
- Welding rod 2.6 - 3.2mm (140A)
- Main application of welding iron and steel (cored steel welding wire),
- Support more stainless steel welding (non-gas core stainless steel welding wire, stainless steel solid core combined with mixed gas),
- Family use or small processing production facilities. Compact machine, convenient to move
Input source: single phase 220V AC, +/- 15%, 50-60Hz
Welding function (rated output):
+ MIG : 160A , 22V DC 30%
+ MMA: 140A, 25.6V DC 35%
Welding current range in current stabilized source (CC) mode :
MMA : 20-140A
Voltage range in voltage stabilized (CV) welding source mode :
MIG : 17-22V
No-load voltage:
+ MIG: 60V
+ MMA : 60V
Input current when output is loaded (50/60Hz, 1 phase):
+ MIG : 33.6A
+ MMA: 33.7A
KVA capacity : 7.3
Power KW : 4.4
Dimensions (length x width x height) mm : 426 x 180 x 290
Weight: 9kg
Included accessories:
+ Removable MIG gun
+ Soldering pliers 200A
+ 200A . mass clamp
+ 3m welding pliers wire, 2m mass clamp wire
