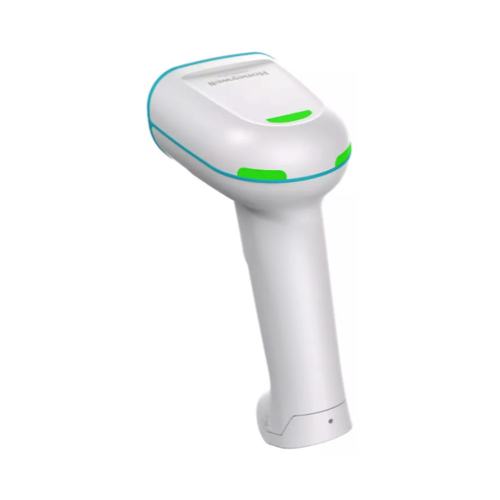

Honeywell Xenon Ultra 1960h ຕູ້ສະແກນສຸຂະພາບ (1D, 2D; 1280 x 1080 pixel array)
MECHANICAL
Dimensions:
108.2 mm x 70.4 mm x 160.2 mm (4.3 in x 2.8 in x 6.3 in)
Weight: 147.2 g (5.2 oz)
Input Voltage: 1960: 4.4V DC to 5.5V DC
Operating Power (Charging) Bases: 2.5W (500 mA @ 5V DC)
Host System Interfaces: USB, Keyboard Wedge, RS-232
User Indicators: Good Decode LEDs, Rear View LEDs, Beeper (adjustable tone and volume) Vibration (optional)
Object Detection: Configurable
3” default when placed in stand
6” with configuration change when placed in stand
ENVIRONMENTAL
Operating Temperature: 0°C to 50°C (32°F to 122°F)
Storage Temperature: -40°C to 70°C (-40°F to 158°F)
Humidity: 0% to 95% relative humidity, non-condensing
Mil Spec Drop: 3.0 m (10 ft)
Drop (Multiple): 1.8 m (6 ft) to concrete across operating temp range
Tumble: 2,000 at 0.5 m (1.6 ft)
ESD (Scanners and Cradles: ±8 kV indirect coupling plane, ±15kV direct air
Environmental Sealing (Scanner): IP52
Light Levels: 0 to 100,000 lux
SCAN PERFORMANCE
Image Sensor: 1280 x 1080 pixel array
Motion Tolerance:
13 mil UPC at optimal focus
SR – 4 meters/second
HD – 4 meters/second
Imager Field of View: SR/HD – Horizontal: 42°; Vertical: 36°
Print Contrast: As low as 15%
Minimum Element:
SR – 2.5mil (1D) / 5mil (2D)
HD – 2mil (1D) / 4mil (2D)
Roll, Pitch, Skew: ±360°, ±65°, ±65°
Decode Capabilities: Reads standard 1D, PDF, 2D, Postal Digimarc, DOT Code, and OCR symbologies
Note: Decode capabilities dependent on configuration
Illumination: White 2700K
LED aimer light source: 525 nm
Image Quality: 109 PPI on an A4 document
