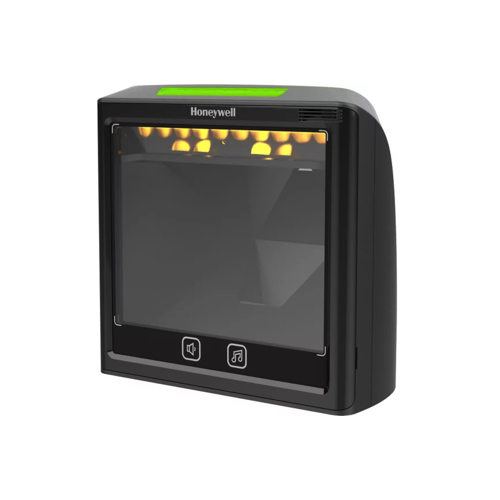

Honeywell solaris xp7990G ຕູ້ສະແກນຊ່ອງຕັ້ງສະແກນພື້ນທີ່ (1280 x 960 pixel array; 1D, PDF, 2D, Postal and OCR symbologies)
MECHANICAL
Dimensions (H x W x D): 148 mm x 152 mm x 85 mm (5.83 in x 5.98 in x 3.35 in)
Weight: 527g (18.6 oz)
ELECTRICAL
Scanner Unit (not including auxiliary scanner):
Input Voltage: 5.0 V to 5.2 V
Operating Current: 400 mA
Standby Current: 270 mA
Sleep Mode Current: 210 mA
Power Supply (sold separately):
Input Voltage: 100 V – 240 V/50 Hz – 60 Hz
Output Current: 5.2 V / 1.0 A
Host System Interfaces: USB, Keyboard
Wedge, RS-232, IBM 46xx (RS485)
ENVIRONMENTAL
Operating Temperature: 0°C to 40°C (32°F to 104°F)
Storage Temperature: -20°C to 60°C (-4°F to 140°F)
Humidity: 5% to 95% relative humidity, non-condensing
IP Rating: IP53
Light Levels: 100,000 lux
SCAN PERFORMANCE
Scan Pattern: Area image (1280 x 960 pixel array)
Motion Tolerance: 4+ m/s for UPC 13 mil at optimal focal point
Scan Angle:
Horizontal: 42°
Vertical: 34°
Print Contrast: 20% minimum
reflectance difference
Pitch, Skew: +/-65°, +/-75°
Decode Capability: Reads standard 1D, PDF, 2D, Postal and OCR symbologies
Note: Decode capabilities dependent on kit configuration
