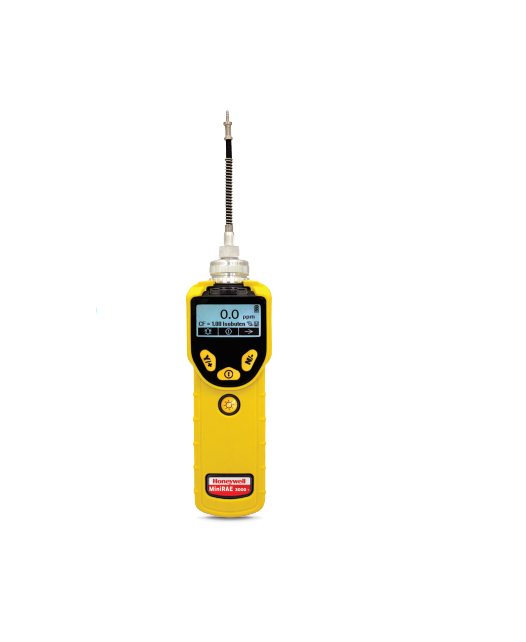

Honeywell MiniRAE 3000+ ເຄື່ອງຕວດສະເຫຼີມສະເຫຼີມ VOC ພັດມາມື
INSTRUMENT SPECIFICATIONS
Size: 10” L x 3.0” W x 2.5” H (25.5 cm x 7.6 cm x 6.4 cm)
Weight: 26 oz (738 g)
Sensors: Photoionization sensor with standard 10.6 eV or optional 9.8 eV or 11.7 eV lamp
Battery
• Rechargeable, external field-replaceable Lithium-Ion battery pack
• Alkaline battery adapter
Running time: 16 hours of operation (12 hours with alkaline battery adapter)
Display Graphic: 4 lines, 28 x 43 mm, with LED backlight for enhanced display readability
Keypad: 1 operation and 2 programming keys, 1 flashlight on/off
Direct Readout
Instantaneous reading
• VOCs as ppm by volume (mg/m³)
• High values
• STEL and TWA
• Battery and shutdown voltage
• Date, time, temperature
Alarms: 95dB at 12” (30 cm) buzzer and flashing red LED to indicate exceeded preset limits
• High: 3 beeps and flashes per second
• Low: 2 beeps and flashes per second
• STEL and TWA: 1 beep and flash per second
• Alarms latching with manual override or automatic reset
• Additional diagnostic alarm and display message for low battery and pump stall
EMC/RFI:
Compliant with EMC directive (2004/108/EC)
EMI and ESD test: 100MHz to 1GHz 30V/m, no alarm
Contact: ±4kV
Air: ±8kV, no alarm
IP Rating
• IP-67 unit off and without flexible probe
• IP-65 unit running
Datalogging: Standard 6 months at one-minute intervals
Calibration:
Two-point or three-point calibration for zero and span.
Reflex PID Technology™
Calibration memory for 8 calibration gases, alarm limits, span values and calibrationdates
Sampling Pump:
• Internal, integrated flow rate at 500 cc/mn
• Sample from 100’ (30m) horizontally or vertically
Low Flow Alarm: Auto pump shutoff at low-flow condition
Communication & Data Download
• Download data and upload instrument set-up from PC through charging cradle or using BLE module and dedicated APP
• Wireless data transmission through built-in RF modem
Wireless Network: Mesh RAE Systems Dedicated Wireless Network
Wireless Range (Typical)
Up to 15ft (5m) for BLE
EchoView Host: LOS > 660 ft (200 m)
ProRAE Guardian & RAEMesh Reader: LOS > 660 ft (200 m)
ProRAE Guardian & RAELink3 Mesh: LOS > 330 ft (100 m)
Temperature: -4° to 122° F (-20° to 50° C)
Humidity: 0% to 95% relative humidity (non-condensing)
Attachments: Durable bright yellow rubber boot
ENSOR SPECIFICATIONS
VOCs:
Range:
0 to 999.9 ppm
1,000 to 15,000 ppm
Resolution:
0.1 ppm
1 ppm
Response Time T90
< 3 s
< 3 s
