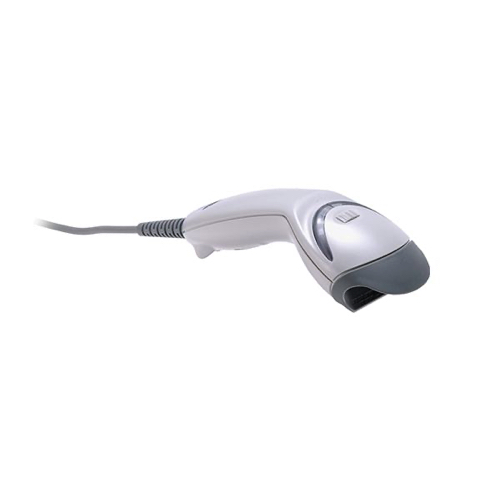

Honeywell Eclipse 5145 ຕູ້ສະແກນບາໂຄດ (Standard 1D and GS1 DataBar symbology)
Mechanical
Dimensions (LxWxH): 169 mm x 63 mm x 51 mm (6.7˝ x 2.5˝ 2.0˝)
Weight: 100 g (3.5 oz)
Electrical
Input Voltage: 5 VDC ± 0.25 V
Operating Power: 675 mW (125 mA @ 5 V)
Host System Interfaces: USB, RS232, Keyboard Wedge, IBM 468xx (RS485)
Environmental
Operating Temperature: 0°C to 40°C (32°F to 104°F)
Storage Temperature: -40°C to 60°C (-40°F to 140°F)
Humidity: 5% to 95% relative humidity, non-condensing
Drop: Designed to withstand 1.5 m (5´) drops
Environmental: Sealing Sealed to resist airborne particulate contaminants
Light Levels: 4842 Lux
Scan Performance
Scan Pattern: Single scan line
Scan Speed: 72 scan lines per second
Scan Angle: Horizontal: 50°
Print Contrast: 35% minimum reflectance difference
Pitch, Skew: 68°, 52°
Decode Capability: Reads standard 1D and GS1 DataBar symbologies.
