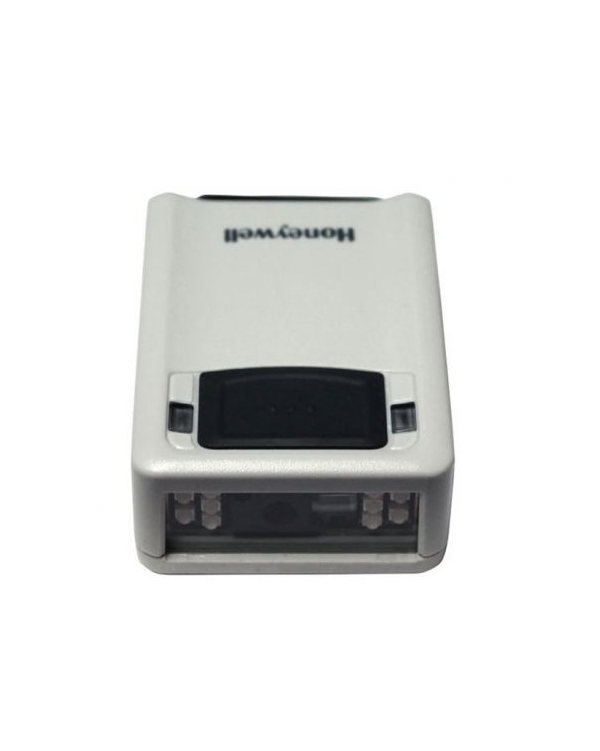

Honeywell 3320GHD-4 ເຄື່ອງອ່ານບາໂຄດ (1D, 2D, OCR)

Dimensions (L x W x H): 73 mm x 51 mm x 26 mm (2.9 in x 2.0 in x 1.0 in)

Weight: 77 g (2.7 oz)

Termination: 15-POS D-Sub connector

Input Voltage: 5VDC ± 0.25V

Operating Power: 2.3W (450mA @ 5V)

Standby Power: 0.45W (90mA @ 5V)

Host System Interfaces: USB, RS-232 and Keyboard Wedge

Scan Pattern: Area Image (838 x 640 pixel array)

Motion Tolerance: >270 cm/s (106 in/s) at focal point

Scan Angle: Horizontal: 42.4°, Vertical: 33°

Decode Capability: Reads standard 1D, PDF, 2D, Postal, Digimarc, DOT Code, and OCR symbologies

Note: Decode capabilities dependent on configuration

Drop: Designed to withstand 1.5 m (5 ft) drops

Environmental Sealing: IP53

Operating Temperature: 0°C to 40°C (32°F to 104°F)

Storage Temperature: -20°C to 70°C (-4°F to 158°F)

Humidity: 5% to 95% relative humidity, non-condensing
