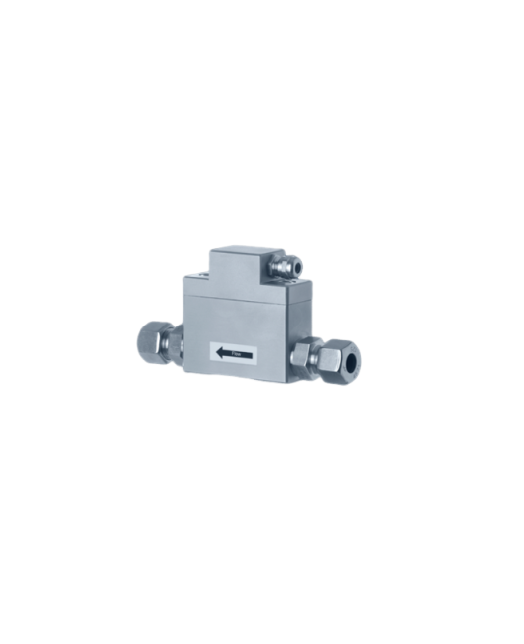

Hoentzsch TA Di ເຊັນເຊີການໄຫຼຄວາມຮ້ອນ (Order code: TA Di 21.6GE60m/s/140/p16ZG2b, 21.6mm, 60m/s)
Sensor type / design: Thermal flow sensor TA Di designed as measuring tube
Dimension:
measuring tube inside diameter Ø Di [mm]: 21.6
installation length L [mm]: 650mm
installation height h [mm]: 50
Measuring gases: air, clean gases, gas mixtures with constant ratio of mixture
Materials in contact with the medium: stainless steel 1.4571, 1.4305, 1.4404, glass, epoxy resin, silicone (silicone-free on request), FKM
Measuring ranges air/nitrogen:
basic types / measuring range: 60 m/s
in m³/h: 0.27 ... 79
in kg/h: 0.32 ... 95
in l/min: 4.4... 1319
in m/s: 0.2 ... 60
1 m³/h equates to [m/s]: 0.758
Permissible temperature:
medium: -10 ... +140 °C
ambient: -25 ... +140 °C
Pressure resistance: max. 16 bar / 1.6 MPa above atmospheric greater than 16 bar / 1.6 MPa on request
For more details, see datasheet.
