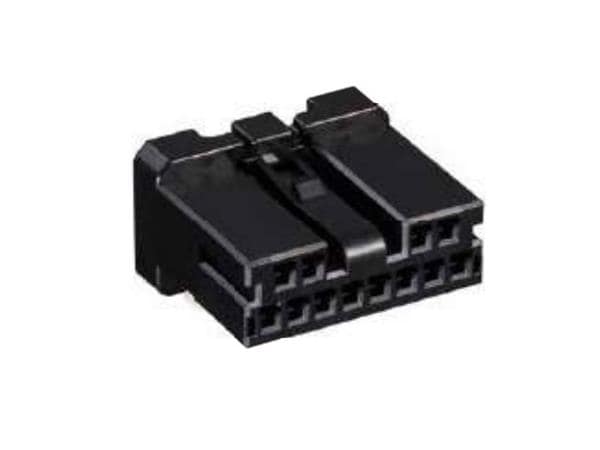

Hirose Electric ZE05-4S-HU/R(A) ຕູ້ປະກອບປະຕູ 4ຕຳແໜ່ງ 0.5 ຂະໜາດ 2mm ຊ່ອງຫຼັກ ຕໍ່ຕ້ານລົດຍນຕະຫລາດ

Color: Black

Pitch: 2 mm (0.079 in)

Contact Type: Socket

Current Rating: 2 A

Housing Gender: Plug

Mounting Angle: Straight

Mounting Style: Cable Mount / Free Hanging

Number of Rows: 1 Row

Voltage Rating: 60 VAC, 60 VDC

Wire Gauge Max: 20 AWG

Wire Gauge Min: 22 AWG

Housing Material: Polyamide (PA)

Termination Style: Crimp

Flammability Rating: UL 94 V-0

Number of Positions: 4 Position

Description/Function: Automotive Interface

Insulation Resistance: 100 MOhms

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C
