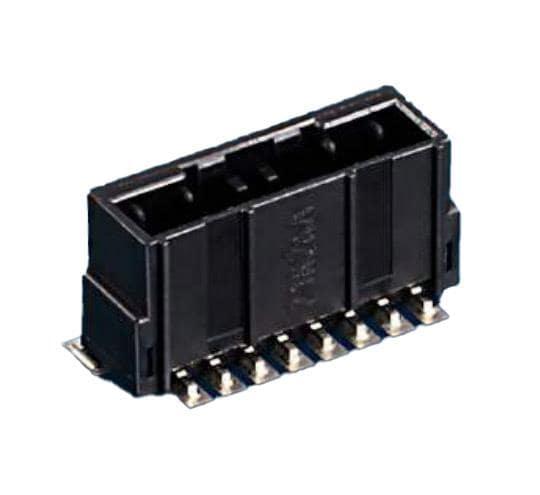

Hirose Electric KM32-6P-2V(BL)(800) ຫົວຂໍ້

Color: Black

Pitch: 2 mm (0.079 in)

Gender: Receptacle (RP - Male)

Application: Wire-to-Board

Current Rating: 3 A

Mounting Angle: Straight

Mounting Style: SMD/SMT

Number of Rows: 1 Row

Voltage Rating: 250 VDC

Wire Gauge Max: 22 AWG

Wire Gauge Min: 22 AWG

Contact Plating: Tin

Contact Material: Brass

Housing Material: Polyphenylene Sulfide (PPS)

Locking Mechanism: Lever Lock

Termination Style: Solder

Number of Positions: 6 Position

Insulation Resistance: 10 MOhms

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
