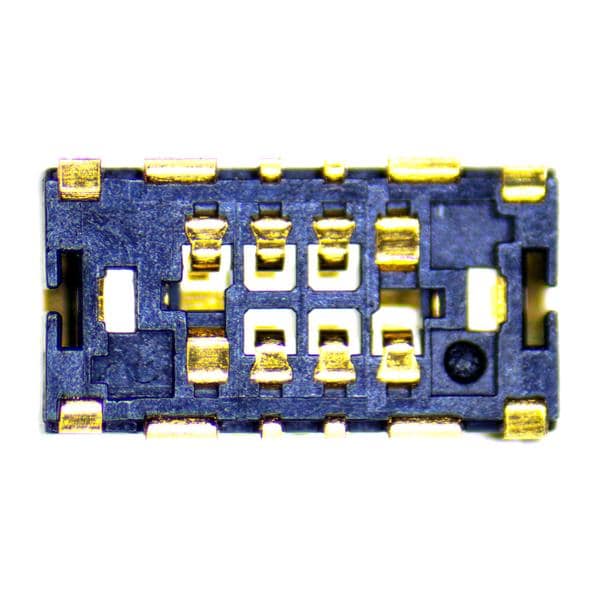

Hirose Electric BM29B0.6-4DS/2-0.35V(53) ປຸ່ມຮັບ

Pitch: 0.35 mm (0.014 in)

Stack Height: 0.6 mm

Current Rating: 300 mA, 3 A

Mounting Angle: Straight

Mounting Style: PCB Mount

Number of Rows: 2 Row

Voltage Rating: 30 V

Contact Plating: Gold

Contact Material: Phosphor Bronze

Housing Material: Liquid Crystal Polymer (LCP)

Termination Style: Solder

Flammability Rating: UL 94 V-0

Number of Positions: 6 Position

Insulation Resistance: 1 GOhms

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
