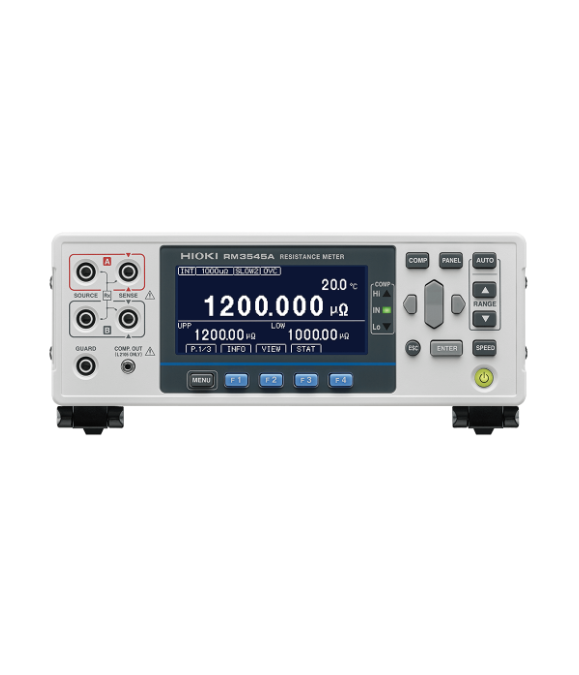

HIOKI RM3545A-2 ເຄື່ອງວັດແທກຄວາມຕ້ານທານ (0.000 µΩ ~1200.0 MΩ)
Maximum allowable voltage: −
Minimum measurement range: 1000 µΩ
Maximum resolution: 1 nΩ
Measurement range: 0.000 µΩ (1000 µΩ range) to 1200.0 MΩ (1000 MΩ range), 13 ranges
Measurement current:
1 A
100 mA, 10 mA, 1 mA, 500 µA, 100 µA, 50 µA, 10 µA, 5 µA, 1 µA, 1 µA or less, 100 nA
Offset voltage compensation: OVC
Temperature correction: TC
Pure resistance mode (PR): 1000 µΩ, 10 mΩ, 100 mΩ ranges
Low-power mode (LP): 1000 mΩ, 10 Ω, 100 Ω, 1000 Ω ranges
Interface: USB, RS-232C, LAN
Fuse: F1.6AH/250 V (replaceable)
Dimensions: Approx. 215W × 80H × 306.5D mm (8.46W × 3.15H × 12.07D in.)
Weight: Approx. 3.4 kg (7.5 lb.)
General Specifications
Operating environmen: Indoor use, pollution degree 2, altitude up to 2000 m (6562 ft.)
Operating temperature and humidity range: 0°C to 40°C (32°F to 104°F), 80% RH or less (non condensing)
Storage temperature and humidity range: −10°C to 50°C (14°F to 122°F), 80% RH or less (non-condensing)
Power supply
Rated supply voltage: Commercial power supply 100 V to 240 V AC (Voltage fluctuations of ±10% from the rated supply voltage are taken into account)
Rated power-supply frequency: 50 Hz/60 Hz
Anticipated transient overvoltage: 2500 V
Maximum rated power: 40 VA
Normal power consumption (reference value): 16 W (measurement current 1 A, LCD on)
Backup battery life: Approx. 10 years (reference value at 23°C)
Fuse: F1.6AH 250 V (installed inside the main body, replaceable)
