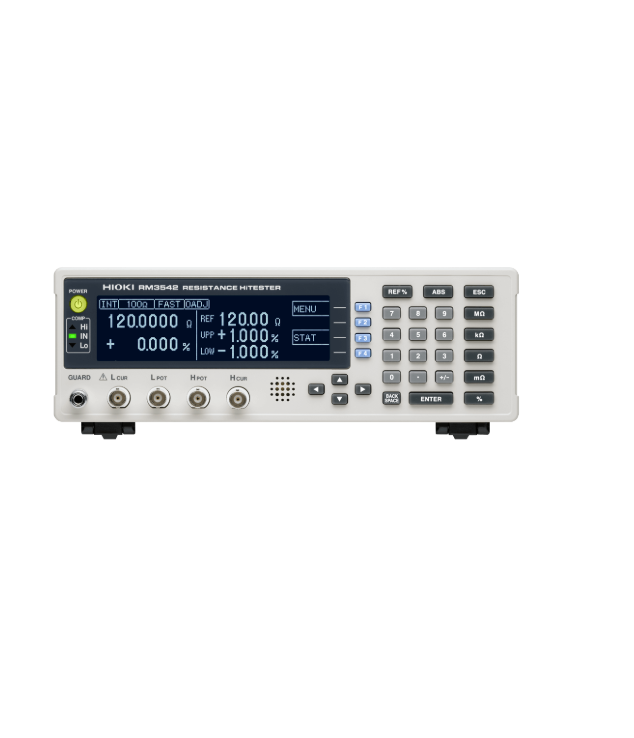

HIOKI RM3542-50 Resistance Meter (100MΩ~1000Ω, Includes RS-232C cable Hioki 9637)
-Resistance range
+ 100 mΩ range (Max. 120.0000 mΩ, 0.1 μΩ resolution) to 100 MΩ range (Max. 120.0000 MΩ, 100 Ω resolution), 16 steps
+ 1000 mΩ range (Max. 1200.000 mΩ, 1 μΩ resolution) to 1000 Ω range (Max. 1200.000 Ω, 1 mΩ resolution), 6 steps
-Display: Monochrome graphic LCD 240 × 64 dot, white LED backlight
-Measurement accuracy:
+ [with SLOW mode, at 100 mΩ range] ±0.015 % rdg. ±0.002 % f.s.
+ [with SLOW mode, at 1000 Ω range] ±0.006 % rdg. ±0.001 % f.s. (best case)
-Testing current: [at 100 mΩ range] 100 mA DC to [at 100 MΩ range] 100 nA DC
- Open-terminal voltage: 20 V DC max.
-Sampling rate: FAST, MEDIUM, SLOW, 3 settings
-Measurement times: [at 100 Ω /1000 Ω ranges, with Low Power OFF], FAST: 0.9 ms, MED: 3.6 ms, SLOW: 17 ms (minimum time)
-Integration time: 0.1 ms to 100.0 ms, or 1 to 5 PLC at 50 Hz, 1 to 6 PLC at 60 Hz
-Interfaces RS-232C, Printer, GP-IB (Model RM3542-51)
-External I/O: Trigger, Hold input, Comparator output, Settings monitor terminal
-Power supply: 100 to 240 V AC, 50/60 Hz, 30 VA max.
-Dimensions and mass: 260 mm (10.24 in) W × 88 mm (3.46 in) H × 300 mm (11.81 in) D, 2.9 kg (102.3 oz)
-Accessories: Power cord ×1, EXT. I/O male connector ×1, Instruction manual ×1, Operation guide ×1, RS-232C cable Hioki 9637
