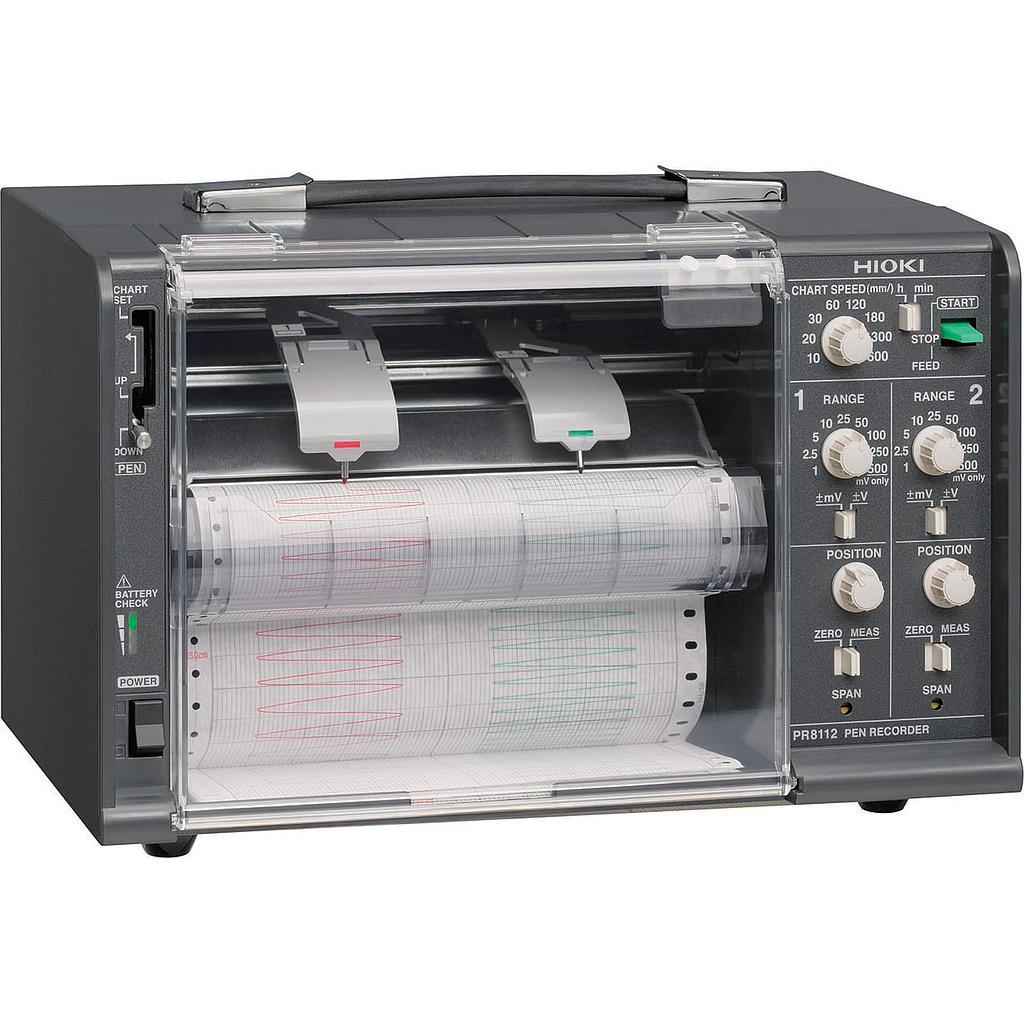

Specification
- No. of pens: 2 pens
- Operating method: Self-balancing, Disposable felt pen recording
- Input: DC Voltage
- Measurement ranges: ±1 mV to 500 mV (9 ranges), ±1 V to 250 V (8 ranges)
- Max. allowable input:
+ 250 V DC (at V range), 30 V DC (at mV range)
+ Max. rated voltage to earth: 300 V DC, AC
- Recording accuracy: ±0.5 % of effective recording width
- Recording width: 150 mm
- Pen interval: 5 mm
- Pen speed: 500 mm/s or greater (using AC adapter)
- Chart speed: 10 mm/min to 600 mm/min (8 ranges), 10 mm/hr to 600 mm/hr (8 ranges)/Accuracy: ±0.25 %
- Recording paper:
+ Fanfold plain paper: SE-10Z-2, length: 15 m
+ Roll plain paper: SE-10, length: 20 m
- Power supply:
+ AC ADAPTER 9418-15 (100 to 240 V, 50/60 Hz)
+ Pin(LR20) × 6
+ Nguồn DC: 10 to 27 V DC
- Continuous use time: 25 hr
- Max. rated power: 4 VA
- Dimensions, mass: 292x177x182mm, 5.3kg
- Supplied accessories: FELT PEN P-1201A (Red) ×1, FELT PEN P-1202A (Green) ×1, RECORDING PAPER SE-10Z-2 (fanfold) ×1, AC ADAPTER 9418-15 ×1, Instruction Manual ×1, Drip-proof cover ×1
- The warrnty preiod: 12 month
