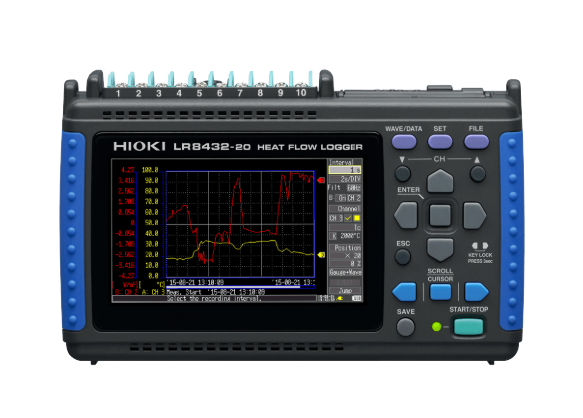

HIOKI LR8432-20 ເຄື່ອງບັນທຶກການໄຫຼຂອງຄວາມຮ້ອນ (10CH)
Measurement Settings
Recording intervals (sampling period): 10 ms to 1 hour, 19 selections
Note: All input channels are scanned at high speed during every recording interval
Graph timebase scaling: 100 ms to 1 day per division, 21 selections
Note: These settings are different than recording interval
Repeating recording: (On/off) Enable to repeat recording after the specified recording time span has elapsed
Recording time: Enable continuous recording (continuous recording until the Stop key is pressed), or disable to record for a specified time span (days, hours, minutes and seconds)
Timer recording: On (measurement with specified start time, stop time, and recording interval), or off
Load stored data: Stored data can be recalled by the logger in 3.5 MWord (7 MB) quantities (for a single channel; less for multiple channels)
Settable save/reload: Configure saving and reloading to and from CF card or USB memory or internal memory
Ten types for internal memory, no limit for CF card and USB memory
Numerical calculations
Calculation 1 to Calculation 4, simultaneous calculation possible,
Selections: average value, peak value, maximum value, minimum value, time to maximum value, time to minimum value, integration
Calculation range
After stopping: all data in internal buffer memory or between AB cursors
While measuring: all data in internal buffer memory
Time-delimited calculation: Calculate at the specified times, and display the latest calculated values (only while measuring)
Auto save of calculated results
Possible: Automatically save the final calculated values in text format to
CF card or USB memory after measurement
Time-delimited calculation: Save calculation values in real-time at the specified times in text format to CF card or USB memory
Selectable filters: 50 Hz, 60 Hz, or off (digital filtering of high frequencies on analog channels)
Channel Settings
Channel settings
Enable/disable measurement (on/off), selectable waveform color
Analog channels (10): Voltage, heat flow, temperature (thermocouple only).
Thermocouple types K, J, E, T, N, R, S, B
Pulse input channels (4): Count Integration or revolutions
Alarm output (1): Hold/not-hold, beeper enable/disable (on/off), show/ hide alarm waveform display (on/off)
Waveform calculations 10ch
Accuracy guarantee conditions
Warm-up time: 30 minutes or more, after zero-adjustment
Cutoff frequency setting: 10 Hz/50 Hz/60 Hz
*For detailed specifications, please refer to the datasheet.
