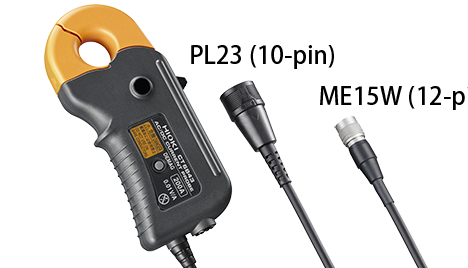

- Rated current: 200 A AC/DC
- Max. allowable input: 400 A rms (requires derating)
- Frequency characteristics: Amplitude: DC to 500 kHz
- Phase: DC to 300 kHz
- Amplitude and phase accuracy: DC ±0.3 % rdg. ±0.02 % f.s. (Phase: Not defined)
DC< f ≤ 100 Hz ±0.3 % rdg. ±0.01 % f.s. (Phase: ±0.1 deg) Defined to 500 kHz
- Power consumption: 6 VA max. (at 200 A/55 Hz, ±12 V power requirement)
- Output voltage: 0.1 V/A (CT6841), 0.01 V/A (CT6843) (voltage output with the - Sensor Unit 9555-10, use with a device having a 1 MΩ input resistance or higher)
- Core diameter: φ 20 mm (0.79 in)
- Operating temperature, humidity: -40 °C to +85 °C (-40 °F to 185 °F), 80% rh or less (with no condensation)
- Power supply: DC ±11 V to ±15 V (Power suppled via the 9555-10, which supports 100 to 240 V AC)
- Dimensions and mass: 153 mm (6.02 in)W × 67 mm (2.64 in)H × 25 mm (0.98 in)D, cord length: 3 m (9.84 ft), 370 g (13.1 oz)
- Accessories: Instruction manual ×1, Mark bands ×6, Carrying Case ×1
- Rated current: 200 A AC/DC
- Max. allowable input: 400 A rms (requires derating)
- Frequency characteristics: Amplitude: DC to 500 kHz
- Phase: DC to 300 kHz
- Amplitude and phase accuracy: DC ±0.3 % rdg. ±0.02 % f.s. (Phase: Not defined)
DC< f ≤ 100 Hz ±0.3 % rdg. ±0.01 % f.s. (Phase: ±0.1 deg) Defined to 500 kHz
- Power consumption: 6 VA max. (at 200 A/55 Hz, ±12 V power requirement)
- Output voltage: 0.1 V/A (CT6841), 0.01 V/A (CT6843) (voltage output with the - Sensor Unit 9555-10, use with a device having a 1 MΩ input resistance or higher)
- Core diameter: φ 20 mm (0.79 in)
- Operating temperature, humidity: -40 °C to +85 °C (-40 °F to 185 °F), 80% rh or less (with no condensation)
- Power supply: DC ±11 V to ±15 V (Power suppled via the 9555-10, which supports 100 to 240 V AC)
- Dimensions and mass: 153 mm (6.02 in)W × 67 mm (2.64 in)H × 25 mm (0.98 in)D, cord length: 3 m (9.84 ft), 370 g (13.1 oz)
- Accessories: Instruction manual ×1, Mark bands ×6, Carrying Case ×1
