HIOKI Alko converter ຕົວແປງ (220VAC&110VDC/220VDC/ 1000W)

INPUT POWER

Rated voltage: 220 VAC

Voltage range: 200–260 VAC

Phase: Single-phase, 2-wire (L, N)

Input current: 7 A

OUTPUT POWER

Output voltage 1: 110 VDC

Output voltage 1 accuracy: < 5% (load 0–100%)

Output waveform: Pure DC

Output voltage 2: 220 VDC

Output voltage 2 accuracy: < 5% (load 0–100%)

Output waveform: Pure DC

Peak efficiency: > 88%

Output power: 1000 W

PROTECTION

Protection type: Overload, short circuit, auto recovery after fault clearance

Protection method: Electronic circuit

ENVIRONMENTAL CONDITIONS

Operating temperature: Minimum < 0°C, maximum > 60°C

Operating humidity: Minimum < 10%, maximum > 80%

DIMENSIONS / WEIGHT

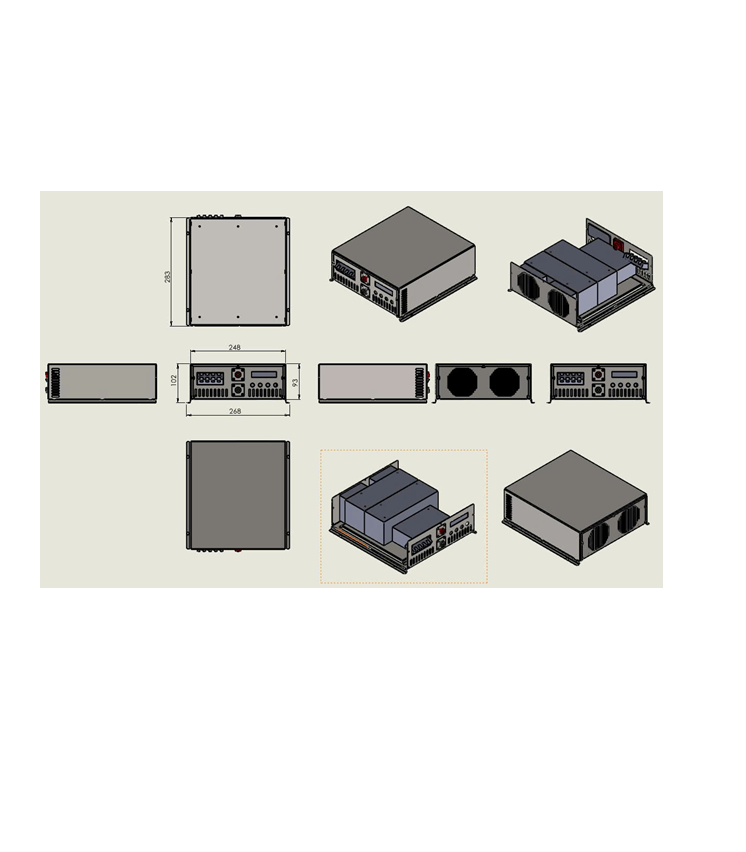

Dimensions (W × D × H) (mm): Desktop / Tower / 19-inch rack mount type

Net weight: < 7 kg
