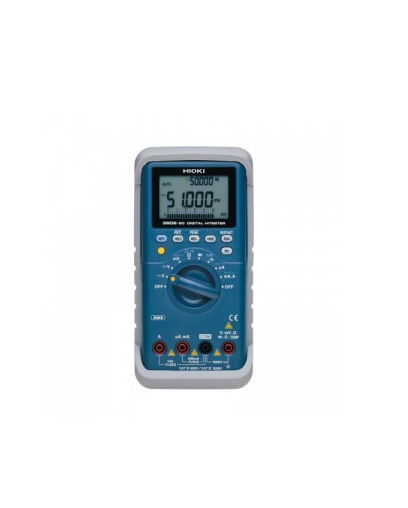

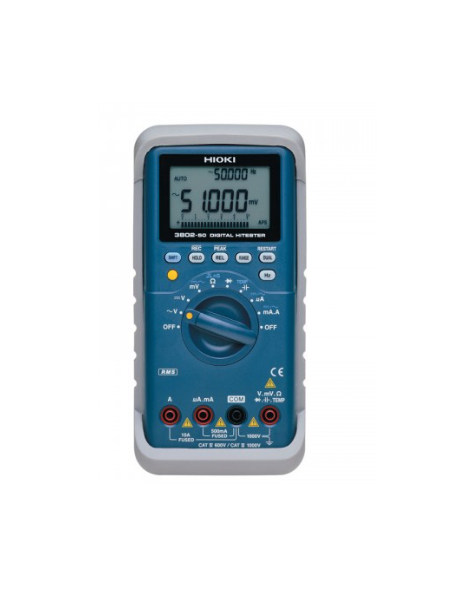

HIOKI 3802-50 ເຄື່ອງວັດອຸນຫະພູມ (1000V AC/DC, 10A AC/DC, True Rms)

True RMS

DC Voltage (DCV): 51 mV ~ 1000 V, 7 ranges

Accuracy: ±0.03% rdg. ±5 dgt

AC Voltage (ACV): 51 mV ~ 1000 V, 7 ranges, 45 ~ 1 kHz

Accuracy: ±0.6% rdg. ±25 dgt

Resistance (Ω): 510 Ω ~ 510 MΩ, 8 ranges

Accuracy: ±0.08% rdg. ±5 dgt

DC Current (DCA): 510 μA ~ 10 A, 6 ranges

Accuracy: ±0.1% rdg. ±25 dgt

AC Current (ACA): 510 μA ~ 10 A, 6 ranges, 45 Hz ~ 2 kHz

Accuracy: ±0.8% rdg. ±20 dgt

Capacitance (C): 9.999 nF ~ 99.99 mF, 8 ranges

Accuracy: ±1.5% rdg. ±5 dgt

Continuity test, Diode test (4.8 V)

Frequency (Hz): 99.999 Hz ~ 999.99 kHz, 5 ranges

Accuracy: ±0.02% rdg. ±3 dgt

Temperature measurement:

−200.0 °C ~ 1372.0 °C (K-type thermocouple)

−210.0 °C ~ 1200.0 °C (J-type thermocouple)

Accuracy: ±0.3% rdg. ±3 °C

Display: LCD

Sampling rate: 3.75 times/s

Dimensions: 100 × 202 × 57 mm

Weight: 680 g
