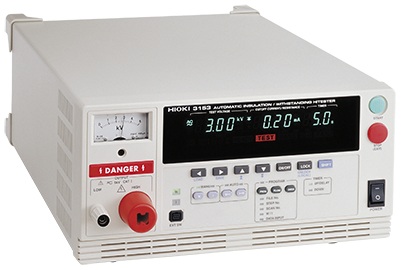

Hioki 3153 AUTOMATIC INSULATION/ WITHSTANDING HiTESTER

Name: Hioki 3153 AUTOMATIC INSULATION/ WITHSTANDING HiTESTER
Brand: HIOKI

ຜູ້ຜະລິດHIOKI

Model3153

ຕິດຕໍ່

ຈຳນວນ

ການຊຳລະເງິນທີ່ປອດໄພ

ການຮັບປະກັນຄຸນນະພາບ

ປ່ຽນ ແລະ ສົ່ງຄືນງ່າຍ

ມີບໍລິການຈັດສົ່ງ

Basic Specifications:	Withstanding Test Section
Testing Voltage:	0.2 kV to 5.00 kV AC, 500VA (maximum 30 minutes) 0.2 kV to 5.00 kV DC, 50VA (continuance)
Voltage Setting Method:	Digital Setting
Waveform:	Same as the power supply waveform
Frequency:	Same as the power supply frequency
Measurement Range:	Current: 0.01 to 100.0 mA, ±(2 % f.s. +5 dgt.) 10 mA/100 mA AC (Average value rectified, effective value display)
Basic Specifications:	Insulation Test Section
Testing Voltage:	50 V to 1000 V DC
Measurement Range:	0.1 M-Ohm to 9999 M-Ohm, 4 ranges
Basic Specifications:	General
Judgement Function:	Contents: UPPER-FAIL / PASS / LOWER-FAIL (Digital setting window comparator method)
Timer Section:	Setting range: 0.3 to 999 seconds
Interfaces:	EXT I/O, EXT SW, RS-232C, GP-IB
Display:	Fluorescent tube display (digital), Analog meter
Monitor Function:	Output voltage, detection current
Power Supply:	100 V to 120 V AC / 200 to240 V AC, (50/60 Hz), 1000 VA max.
Dimensions:	320 mm(12.60 in)W × 155 mm(6.10 in)H × 480 mm(18.90 in)D
Weight:	18kg (634.9 oz)
Accessories:	9615 H.V. TEST LEAD (high voltage side and return, 1 each), Power cord (1), spare fuse (1)

Programable testing, full remote control, Automatic Insulation Withstanding Tester

This electrical safety test instrument series is designed for insulation resistance and voltage withstand testing of electrical devices and components according to various safety standards. A multitude of automation and labor-saving features are provided to ensure effective testing for a wide variety of requirements and test conditions. Select the most appropriate model for your applications.

Insulation and AC/DC continuous voltage withstand testing
Safety standards compliance testing
Stores up to 10 sets of test conditions (10 each for insulation and voltage withstand)
Zero-V Switching (voltage withstand testing)
Electrical Discharge function (DC voltage withstand, insulation testing)
Automated testing support
Interlock Protect function
Remote controllable

Basic specifications : Withstanding test section

Testing voltage	0.2 kV to 5.00 kV AC, 500VA (maximum 30 minutes) 0.2 kV to 5.00 kV DC, 50VA (continuance)
Voltage setting method	Digital setting
Waveform	Same as the power supply waveform
Frequency	Same as the power supply frequency
Measurement range	Current: 0.01 to 100.0 mA, ±(2 % f.s. +5 dgt.) 10 mA/100 mA AC (Average value rectified, effective value display)

Basic specifications : Insulation test section

Testing voltage	50 V to 1000 V DC
Measurement range	0.10 M-ohm to 9999 M-ohm, 4 ranges

Basic specifications : general

Judgment function	Contents: UPPER-FAIL / PASS / LOWER-FAIL (Digital setting window comparator method)
Timer section	Setting range: 0.3 to 999 seconds
Interfaces	EXT I/O, EXT SW, RS-232C, GP-IB
Display	Fluorescent tube display (digital), Analog meter
Monitor function	Output voltage, detection current
Power supply	100 V to 120 V AC / 200 to240 V AC, (50/60 Hz), 1000 VA max.
Dimensions, mass	320 mm(12.60 in)W × 155 mm(6.10 in)H × 480 mm(18.90 in)D, 18 kg (634.9 oz)
Accessories	H.V. TEST LEAD 9615 (high voltage side and return, 1 each), Power cord (1), spare fuse (1)
