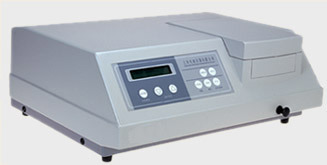

HINOTEK SP2000 Visible Spectrophotometer (325-1000nm)
Basic testing mode:
Basic measurement:
-Photometric measurement,(A/T)
- Concentration measurement (C)
Concentration measurement:
- Slope method (C=K*A)
- Standard curve method
Software functions: Win-spec workstation, SP-1.33EN
Photometric analysis: T, A, and C measurement
Quantitative analysis: Standard curve measurement
Kinetic analysis: Measurement with time-scanning
Main Specification:
Display: 3.5bits digital LCD Displayer
Light Source: 6V10W Halogen Lamp(2000 hours)
Sample Compartment(Max): 50mm Optical Path
Standard Cell Holder: 50mm
Standard Cell Configuration: 10mm Glass cell(4pcs)
Power Requirement: 110/220VAC，50/60Hz,±10%
Basic instrument functions:
100%T or 0%T setup: Automatic.
Signal output: RS-232C, Analog
Communication function: Intercommunication can be realized after connecting to PC
Photometric Performance:
Photometric Analysis: T, A, and C measurement;
Photometric Range: 0-125.0%T，0-1.999A, 0-1999C， 0-1999F
Photometric Accuracy: ±0.5%T
Photometric repeatbility: 0.3%T
Stability: ±0.003A/hr (at 500nm, after warming up for 1
hour)
Optical Performance:
Optic System: Littrow type optic system with 1200 grooves/mm diffraction grating monochromator
Light path: 100mm
Spectrum bandwidth: 5nm
Wavelength range: 325-1000nm
Wavelength accuracy: ±2nm
Wavelength repeatability: 1nm
Stray light: ≤0.5%T（at 360nm ）
