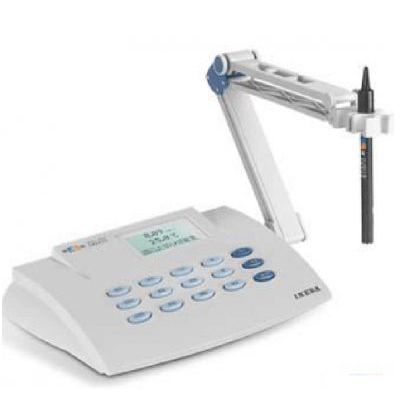

HINOTEK JPSJ-605 ເຄື່ອງວິເຄາະອົກຊີເຈນທີ່ລະລາຍ (0.00～20.00mg/L, ±0.30mg/L)

Measuring range:

Dissolved oxygen: (0.00～20.00)mg/L

Dissolved oxygen saturation： (0.0～200.0)%

Temperature: (-5.0～105.0)°C

Accuracy:

Dissolved oxygen concentration: ±0.30mg/L

Dissolved oxygen saturation: ±10.0%FS

Temperature: ±0.5℃±1 digit

Response time: <= 45s(90%respond at 20°C)

Aftercurrent: ≤0.1mg/L

Temperature compensation range: Automatic(0.0～40.0)°C

Salinity calibration range: (0.0～40.0)g/L

Atmospheric pressure calibration range: （77.0～110.0）k Pa

Stability:（±0.20mg/L）/1h

Power: universal power adapter(9VDC，500mA，inside positive, outside negative)

Dimension(mm)：290×200×70

Net Weight: 1kg

Package Size: 340X270X280mm, Gross Weight: 2.5kg

Functions:

1.LCD display and English operation interface

2.It has automatic temperature compensation, full scale, atmospheric pressure, salinity calibration and power failure functions.

3.It has a display of dissolved oxygen concentration and temperature, dissolved oxygen saturation, and temperature, current value, and temperature.

4.Measuring results can be stored, deleted, viewed and printed. Up to 150 sets of measuring data can be stored. Also, it provides two printing modes such as real-time printing and storage printing.

5.It has RS-232 port and can be connected with TP-16 serial printer. If matched with specific data collecting software, it can be connected with PC.

6.It is equipped with DO-958-S dissolved oxygen sensor.
