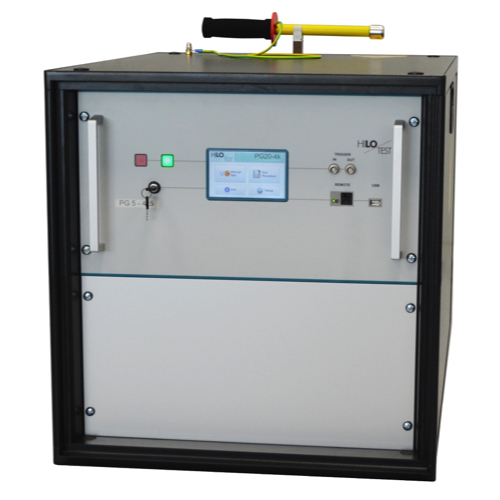

HILO-test PG 5-4500 ເຄື່ອງສ້າງຄວາມຕົວສູງສຸດຂອງກະຊວງກະຊວງສູງ (250 A, 1.5/5000 µs)
Mainframe control unit
Microprocessor controlled touch panel: 5”, 800x480, 24 bit
Optical Ethernet Interface for remote control of the generator: optional
Interface for saving reports: USB
External Trigger input: Switch
External Trigger output: 10 V at 1 kΩ
Connector for external safety interlock loop: 24 V =
External red and green warning lamps (acc. to VDE 0104): 230 V, 60W
HV unit
Charging voltage, adjustable: 0.2 - 5 kV ± 2 %
Accuracy of the test current: < 2%
Energy storage capacitor, selectable: 4 * 100 µF
Charging time, max.: < 60 sec
Max. repetition rate: 1/100 sec
Connection for ground rod: M 6
Ground rod: 0.7 m long
Mains power: 230 V, 50/60 Hz, 1250 VA
Pulse forming network (250 A, 1.5/5000 µs)
Waveform of short circuit output current: 1.5 / 5000µs ±20%
Peak output current, adjustable by preset of charging voltage: 2 * 5 - 125 A ± 5 %
Polarity of pulse output current, selectable: POS/NEG
Energy, switchable: 100 – 400 µF, 3 steps
Monitor output for pulse output current, built-in: 100 mΩ, 1.0 MHz
Pulse current output: plug-in terminals on the rear panel, HV Plug
Dimensions (W * H * D): 600 * 800 * 800 mm³
Weight: 100 kg
