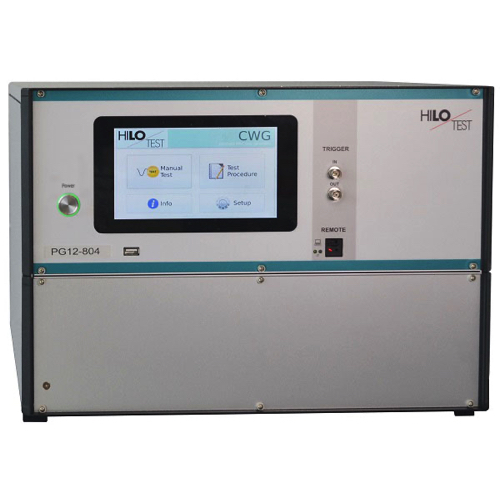

Mainframe
Microprocessor controlled touch panel: 7”, capacitive
Optical Ethernet Interface for remote control of the generator: optional
Interface for saving reports: USB
External trigger input/output: Switch / 10 V
Connector for external safety interlock loop: 24 V =
External red and green warning lamps acc. to VDE 0104: 24 V =, 40 mA
Mains power: 230 V, 50/60 Hz
Dimensions of desk top case (W * H * D): 450*330*500 mm³
Weight: 25 kg
Combination Wave Generator acc. to IEC 61000-4-5: 2014 / IEC 61000-4-4: 2012
Test voltage (open circuit condition): 0.2 – 12 kV ± 10 %
Waveform acc. to IEC 60060: 1.2 / 50 µs ± 30/20 %
Test current (short circuit condition): 0.1 - 6.0 kA ± 10 %
Waveform acc. to IEC 60060: 8 / 20 µs ± 20 %
Polarity of output voltage/current, selectable: pos/neg/alt
Maximum stored energy: 800 Joule
Charging time for max. charging voltage: < 20 s
HV-output: isolated from ground HV-OUT, COM
Mains synchronous triggering:
Phase shifting, digitally selectable: 0 - 360 °, Step 1°
Ext. Sync. Input for synchronisation to the external CDN mains: built-in
Optical output for control of external CDN: built-in
Display of peak values of pulse voltage and current: built-in
Monitor output for pulse output voltage: ratio = 1000:1 ± 5 %
Monitor output for pulse output current: 10 V = 5 kA ± 5 %
Accessories
Power cable, turn key, HV-cable (1 m), instruction manual
