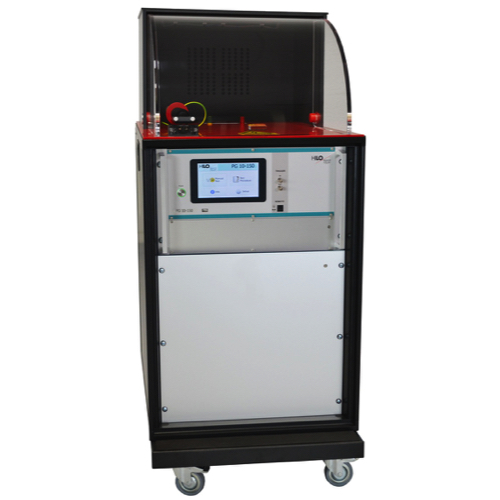

HILO-test PG 10-150 ການທົດສອບການເກີດໄຟ (± 0.5-10 kV ; 3 µF; 300V / 16A)
Mainframe
Microprocessor controlled touch panel: 7”, capacitive
Optical Ethernet Interface for remote control of the generator: optional
Interface for saving reports: USB
External Trigger input/ output: switch/ 10 V
Connector for external safety interlock loop: 24 V =
External red and green warning lamps acc EN 50191 (VDE 0104): 24 V=, 40 mA
Mains power: 230V, 16A, 50/60 Hz
Dimension: Case without protective cover, 24HE, on 4 wheels (2 lockable)
Size (W * H * D): 550 * 1100 * 800 mm³
Weight: 85 kg
AC voltage source
Output voltage, adjustable: 0 - 300 V
Output current, max: 16 A
Filter capacitor: 1 µF
Series inductor: 3 mH
Parallel capacitor C3, can be switched off: 33 nF
High voltage impulse generator
Charging voltage, adjustable: ± 0.2 - 10 kV
Polarity: Pos / neg / alt
Charging current: ca. 10 mA
Energy storage capacitor: 3 µF
Series damping resistor R, switchable: 5 / 10 / 40 / 100 Ω
The pulse-forming networks according to IEC 60384-14 are adjustable
High voltage switch S, triggerable: built-in
DUT connection, pluggable, on the top of the unit
Series resistor for current limiting: built-in
