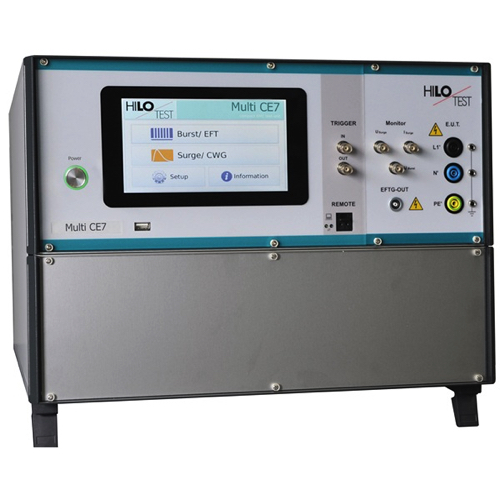

HILO-test Multi CE7 Compact EMC-Tester
Mainframe
Microprocessor controlled touch panel: 7”, capacitive
Optical Ethernet Interface for remote control of the generator: optional
Interface for saving reports: USB
External trigger input/output: Switch / 10 V
Connector for external safety interlock loop: 24 V =
External red and green warning lamps: 24 V=, 40 mA
Mains power: 90 V - 264 V, 50/60 Hz
Dimensions of desk top case (W × H × D): 450 × 330 × 500 mm³
Weight: 25 kg
Internal 1-phased de-/coupling network (CDN)
Coupling-/decoupling network for power supply lines: L1, N, PE
Nominal voltage, nominal current: 300 V, 16 A ac/dc ≈ / 300 V, 16 A =
Coupling impedance (depending on the generator): 33 nF / 18 µF / 9 µF + 10 Ω
BURST (IEC 61000-4-4: 2012)
Pulse output voltage, adjustable: 0.2 - 5 kV ± 10 %
Waveform: 5/50 ns
SURGE (IEC 61000-4-5: 2014)
Test voltage (open circuit condition): 0.2 - 7.0 kV ± 10 %
Waveform acc. to IEC 60060: 1.2 / 50 µs ± 20/± 30 %
Test current (short circuit condition): 0.1 - 3.5 kA ± 10 %
Waveform acc. to IEC 60060: 8 / 20 µs ± 20 %
POWER FAIL (option, IEC 61000-4-11/29: 2020/2010)
Rated current / Inrush current, max.: 16 A / 500 A
AC: Rise and fall time at 100 Ω load: 1 – 5 µs
DC: Rise and fall time at 100 Ω load: 1 – 50 µs
RINGWAVE (option, IEC 61000-4-12: 2017)
Impulse output voltage, adjustable: 0.2 - 7.0 kV ± 10 %
Output waveform acc. to IEC 61000-4-12: 0.5 µs / 100 kHz
TSURGE (option, ITU, FCC part 68 and IEC 61000-4-5)
Peak value of impulse output voltage, adjustable (1 V steps): 0.2 - 7.0 kV ± 10 %
Waveform of impulse output voltage, acc. to IEC 60600
Surge waveform, acc. to IEC 60600-1: 10/700 µs ± 30/± 20 %
