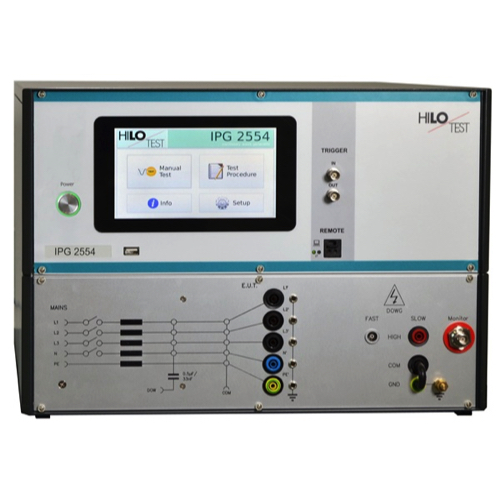

Mainframe:
Microprocessor controlled touch panel: 7”, capacitive
Optical Ethernet Interface for remote control of the generator: optional
Interface for saving reports: USB
External trigger input/output: Switch / 10 V
Coupling-/decoupling network for power supply lines: L1, L2, L3, N, PE
Connector for external safety interlock loop: 24 V=
External red and green warning lamps: 24 V=, 40 mA
Mains power: 90V - 264V, 50/60 Hz
Dimensions of desk top case (W * H * D): 450 * 330 * 500 mm³
Weight: 35 kg
Slow Damped Oscillatory:
Peak1 open circuit voltage: 200V to 3 kV (± 10%)
Oscillation frequencies: 100 kHz | 1 MHz (± 10%)
Repetition rate: 40 Hz – 400 Hz (± 10%)
Voltage rise time (first peak): 75 ns ± 20%
Voltage decay:
Peak5: > 50 % of Peak1 value
Peak10: < 50 % of Peak1 value
Fast Damped Oscillatory:
Peak1 open circuit voltage: 200V to 4 kV (± 10%)
Oscillation frequencies: 3 MHz | 10 MHz | 30 MHz (± 10%)
Repetition rate: 40 – 5000 Hz (± 10%)
Voltage rise time (first peak): 5 ns ± 30%
Voltage decay:
Peak5: > 50 % of the Peak1 value
Peak10: < 50 % of the Peak1 value
Coupling- / Decoupling Network for AC/DC power supply ports (CDN 2554-16):
Coupling capacitor, slow pulses: 0.5 µF
Coupling capacitor, fast pulses: 33 nF
Isolation withstand capability of the coupling capacitors with the 1.2/50µs wave: 5 kV
