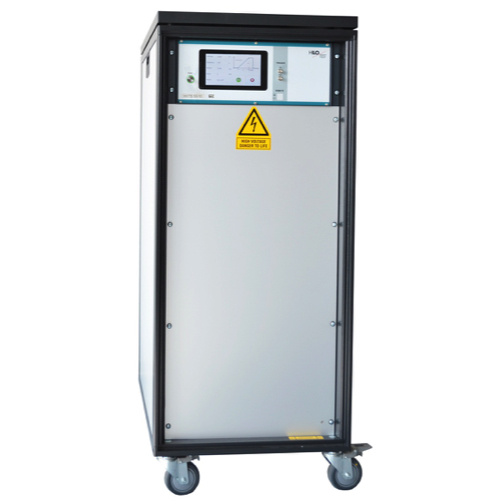

HILO-test HVTS 3020 ຊຸດທົດສອບແຮງແປງໄຟຟ້າສະເພາະ (30 kV; 20 mA)
Mainframe
Microprocessor controlled touch panel: 7”, capacitive
Optical Ethernet Interface for remote control of the generator: optional
Interface for saving reports: USB
External Trigger input/ output: Switch/ 10V
Connector for external safety interlock loop: 24 V=
External red and green warning lamps: 24 V=, 40 mA
Mains power: 230 V, 50/60 Hz
Dimensions (W * H * D): 550 * 1250 * 800 mm³
Weight: 80 kg
HV-Generator
Test voltage, adjustable: 0.1 - 30 kV=
Test current, adjustable: 1 - 20 mA
Short circuit current (according to the requirements of VDE 0551): > 20 mA
Test mode, available: turn-off / burn
High voltage output, referred to ground: back
Tolerance of output voltage amplitude: ± 1% based on full scale.
Rise of sinus voltage ramp, adjustable: 0.1 - 30 kV/s
Rise of sinus voltage ramp, adjustable: 1 V/s - 10 kV/s
Test time, adjustable (1 sec/Step, turn-off & burn): 1 - 100 sec
Test time, adjustable (10 sec/Step, only for turn-off): 1 - 1000 sec
