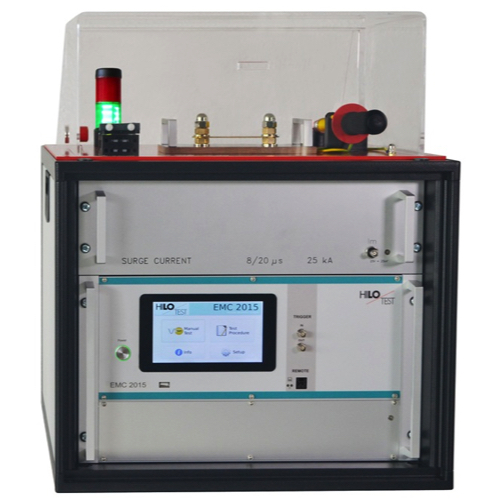

Mainframe
Microprocessor controlled touch panel: 7”, capacitive
Optical Ethernet Interface for remote control of the generator: optional
Interface for saving reports: USB
External trigger input/output: Switch / 10 V
Peak value of charging voltage, adjustable: 0.2 - 10 kV ± 2 %
Output pulse polarity, switchable: POS/NEG/ALT
Maximum stored energy: 1500 J
Energy storage capacitor (standard version): 30 µF / 10 kV
Charging time: < 20 s
Waveform and amplitude of the pulse output: according to the selected plug-in
Connector for external safety interlock loop: 24 V =
External red and green warning lamps acc. to VDE 0104: 24 V =, 40 mA
Mains power: 230 V, 50/60 Hz
Dimensions of desk top case (W * H * D): 556*470*600 mm³
Weight: 65 kg
Safety Test Cover
Mounted on the top of the equipment
Safety interlock loop: connected to the limit switch
Red and green warning lamps: installed
Dimensions (W * H * D): ca. 440*180*300 mm³
Available Waveform Plug-ins (Part 1)
Impulse current plug-in (basic configuration): 8 / 20 µs, 25 kA
Impulse current plug-in: 10 / 50 µs, 5.0 kA
Impulse current plug-in: 10 / 350 µs, 600 A
Impulse current plug-in: 10 / 700 µs, 300 A
Impulse current plug-in: 10 / 1000 µs, 200 A
Impulse voltage plug-in (special version): 10 / 700 µs, 10 kV
Available Waveform Plug-ins (Part 2)
Combination wave plug-in: 8 / 20 µs, 25 kA / 1.2 / 50 µs, 10 kV
Waveform plug-in for testing varistors:
Impulse current plug-in: 8 / 20 µs, 2.5 kA
Impulse output current, adjustable via charging voltage: 0.2 - 2.5 kA ± 5 %
Waveform of impulse output current acc. to IEC 60060: 8 / 20 µs ± 20 %
Ringing: < 30 %
Current viewing resistor (built-in): 20 mΩ, 20 MHz
