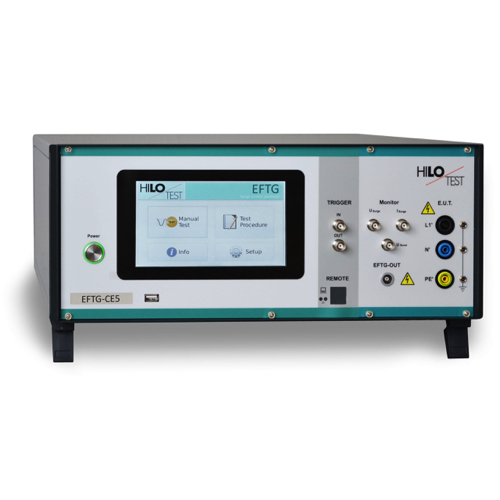

Mainframe
Microprocessor controlled touch panel: 7”, capacitive
Optical Ethernet Interface for remote control of the generator: optional
Interface for saving reports: USB
External trigger input/output: Switch / 10 V
Connector for external safety interlock loop: 24 V =
External red and green warning lamps: 24 V =, 40 mA
Mains power: 90 V – 264 V, 50/60 Hz
Dimensions of desk top case (W * H * D): 450*180*500 mm³
Weight: 25 kg
Internal Coupling/Decoupling Network (CDN)
Type: 1-phased de-/coupling network
For power supply lines: L1, N, PE
Nominal voltage/current: 300 V, 16 A ac ≈ / 300 V, 16 A dc =
Coupling impedance (depending on the generator): 33 nF / 18 µF / 9 µF + 10 Ω
BURST (IEC 61000-4-4: 2012)
Pulse output voltage, adjustable: 0.2 – 5 kV ± 10 %
Waveform: 5/50 ns
Source impedance: 50 Ω
Polarity (selectable): pos/neg/alt
Burst frequency, adjustable: 1.0 kHz – 1.0 MHz
Burst duration, adjustable: 0.01 ms – 25 ms
Burst period, adjustable: 10 ms – 1000 ms
HV output for external coupling devices: coaxial
Monitor output for pulse output voltage: ratio = 100:1 ± 5 %, 50 Ω
