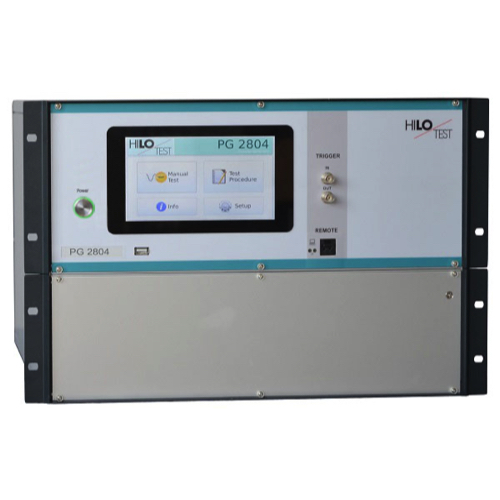

For testing electromagnetic immunity of the electrical installation of vehicles and components against supply line transients.
Mainframe
Microprocessor controlled touch panel: 7”, capacitive
Ethernet Interface: Built-in, for remote control of the generator
Interface for saving reports: USB
External trigger input/output: Switch / 10 V
Connector for external safety interlock loop: 24 V=
External red and green warning lamps: acc. to VDE 0104, 24 V=, 40 mA
Mains power: 230 V, 50/60 Hz
Dimensions (desk top case, W × H × D): 450 × 330 × 500 mm³
Weight: 35 kg
Pulse Generator
Charging voltage: Adjustable 0 – 202 V ±10%
Max. storage energy: 800 Wsec
Repetition time: min. 10 sec – max. 1000 sec
Pulses
Pulse #5: 10 / 400 ms
Test A: 10 / 350 ms
Test B:
10 / 300 ms
10 / 250 ms
10 / 200 ms
10 / 150 ms
10 / 100 ms
10 / 40 ms
