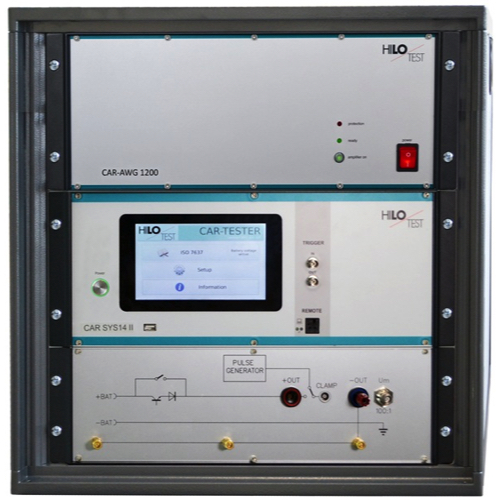

HILO-test CAR-AWG 1200 ອຸປະກອນທົດສອບ EMC ສໍາລັບການຕິດຕັ້ງໄຟຟ້າຂອງຍານພາຫະນະ (Max. 75V Vpeak / 40A ( 80A peak))
Mainframe
Ethernet Interface: Built-in, for remote control of the generator
Connector for external safety interlock loop: 24 V=
External red and green warning lamps: acc. to VDE 0104, 24 V=, 40 mA
Mains power: 230 V, 50 Hz
Dimensions (case, W × H × D): 450 × 180 × 500 mm³
Weight: 45 kg
Amplifier
Type: 4-quadrant voltage and current amplifier
Power bandwidth: 200 kHz
Frequency range (small signal -3 dB): 1 MHz
Max. voltage: ±75 V
Max. current: ±40 A
Max. current (500 ms): ±80 A
Max. power: 1200 W
Selectable output impedance: 0 - 200 mΩ
Overvoltage protection: ✓
Voltage/Current monitoring: ✓
Slew rate: 70 V/µs
Small signal bandwidth: DC - 600 kHz
Residual noise output: <62 dBV; 10 Hz - 500 kHz
Signal/Noise output: >97 dBV; 10 Hz - 200 kHz
Cooling: Controlled fans and heat sink
Overcurrent protection: With CAR SYS magnetic and thermic
Triggering: With CAR SYS software / Manual / External
Trigger output: With CAR SYS for oscilloscope
Arbitrary Generator
Resolution: 14 Bit
Sample rate: 20 MSa/s
Max. points: 16 MSa
Segment types: DC, Sinus, Sine sweep, Ramp, Exponential function
