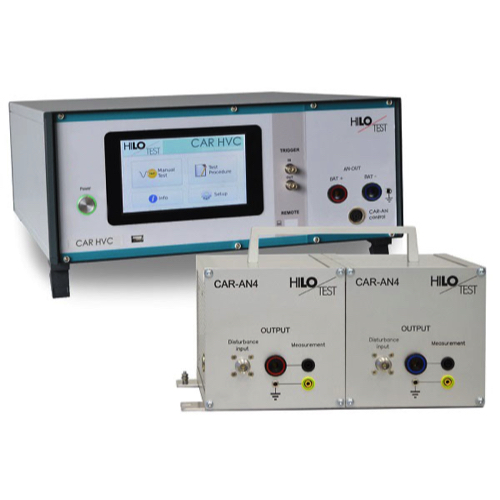

HILO-test CAR AN-HV ອຸປະກອນທົດສອບ EMC ສໍາລັບເສັ້ນສົ່ງກະສົງ HV ທີ່ມີການປົກປ້ອງ (90 V – 264 V, 50/60 Hz)
Simulate various types of transients appear on the high voltage supply lines generated by the switching of various devices.
Mainframe
Microprocessor controlled touch panel: 7”, capacitive
Ethernet interface for remote control of the generator: Built-in
Interface for saving reports: USB
External trigger input/output: Switch / 10 V
Connector for external safety interlock loop: 24 V=
External red and green warning lamps (acc. to VDE 0104): 24 V=, 40 mA
Mains power: 90 V – 264 V, 50/60 Hz
Dimensions (desk top case, W × H × D): 450 × 180 × 500 mm³
Weight: 25 kg
Electrical Transient Conduction (according to DIN / ISO 7637-4)
Max. operating voltage: 1500 V
Load resistor (external): 500 Ω
Load capacitor: 10 µF
Battery capacitor: 100 µF
Residual voltage monitoring: Built-in
Ground switch: Built-in
Battery: Switchable on/off
Artificial Network
Series inductance: 5 µH, 50 A / 100 A
Load impedance: 0.1 µF + 50 Ω
Connectors for external load resistor, > 2.0 Ω: built-in
Impedance according to ISO 7637-4: type test
