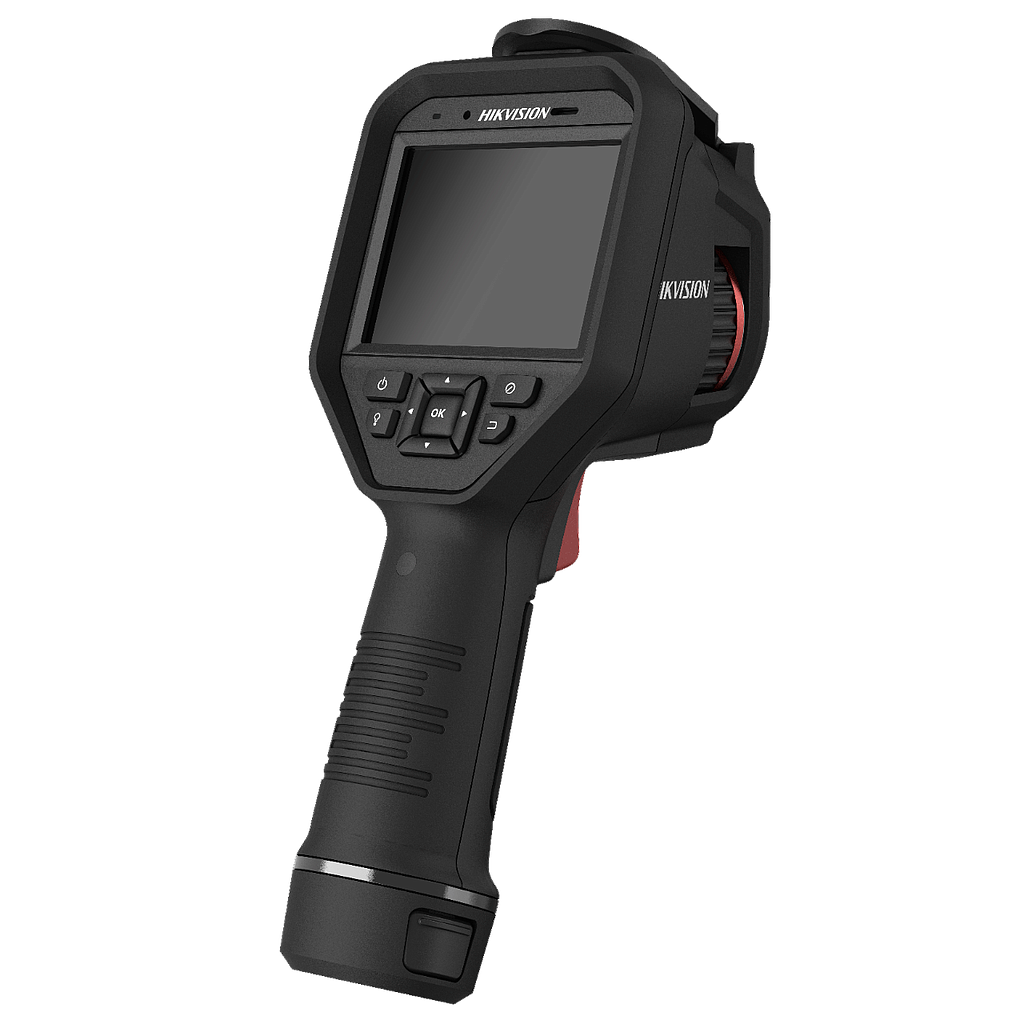

Hikvision DS-2TP23-10VF/W ກ້ອງຖ່າຍຮູບເຄື່ອງຄວບຄຸມອຸນຫະພູມແບບມືຖື (-20~550°C; 384 x 288 pixels)
Thermal module
Image sensor: Uncooled Focal Plane Arrays, VOx
Max. Resolution: 384 x 288 @ 25 Hz
Pixel Pitch: 17 μm
NETD: < 40 mK (@ 25 °C, F#=1.0)
Field of View: 37.5° × 28.5 °
Focal Length: 10 mm (manual focus
IFOV: 1.7 mrad
Aperture: F 1.0
Optical module
Max. Resolution: 1920 x 1080
Monitor: 640 x 480 resolution 3.5’’ LCD touch display
Palettes: Black hot, White hot, Red hot, Rainbow, Ironbow, Fusion, Rain
Image Display
Digital Zoom: Thermal: 1×, 2×, 4×
Thermal/ optical: Thermal / Optical / Image Fusion / Picture in picture
Video Recording: Supports on-board video recording
Thermography
Rules: Max. temperature; min. temperature; center temperature
Custom point, line and frame Thermography
Range: -20 °C to 550 °C (-4 °F to 1022 °F)
Accuracy: Max (±2 °C, ±2%)
Battery
Battery Type: Replaceable and rechargeable lithium battery
Operating Time: Max 4h
Operating Temperature: -10 °C to 50 °C (14 °F to 122 °F)
Protection level: IP54
Dimension: 244 mm x 100 mm x 104 mm (9.6“ x 3.9“ x 4.1“ )
Weight: 660 g (1.46 lb)
Accessories: Charger/power adapter/USB cable/64G memory card/User manual/ wrist strap/ box
