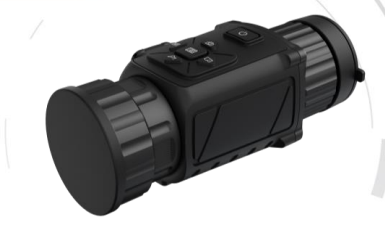

HIKMICRO TH35C ໂມໂນໂຄລຄວາມຮ້ອນ (384 × 288 pixel)
Thermal Module
Image Sensor: Uncooled Focal Plane Arrays
Pixel Interval: 17 μm
Max. Resolution: 384 × 288
Response Waveband: 8 μm to 14 μm
NETD: < 35 mK (25 °C,F# = 1.0)
Lens (Focal Length): 35 mm
IFOV: 0.49 mrad
Field of View: 10.0°× 8°
F Number: F1.0
Frame Rate: 50 Hz
Magnification: 1 ×
Image Display
Display: 0.39-inch, OLED, 748 × 561
Palettes: Black hot, white hot, red hot, fusion
Exit Pupil: 22 mm
Eye Relief: 10 mm
Observation Distance Max.: 1235 m
Contrast Adjustment: Yes
Brightness Adjustment: Yes
Power Supply
Battery: Replaceable, Applicable type: CR123A, RCR123A
Battery Operating Time: 4.5 h (25 °C, with hotspot off), 4 h (25 °C, with hotspot on)
Anti-reverse battery connection: Yes
Overvoltage Protection: Yes
Battery Capacity Display: Yes
Type-C Power Supply: 5 VDC, 2 A, Supports external power supply
General
Port: Type-C
Working Temperature : -20 °C to 55 °C (-4 °F to 131°F)
Protection Level: IPX7
Shock Absorption Design: Yes
Vibration & Shock: 750 g/1 ms
Dimension (L × W × H): 153.2 mm × 62.5 mm × 59.2 mm (6.03" × 2.46" × 2.33")
Weight : 0.42 kg (0.93 lb) without eyepiece and batteries
