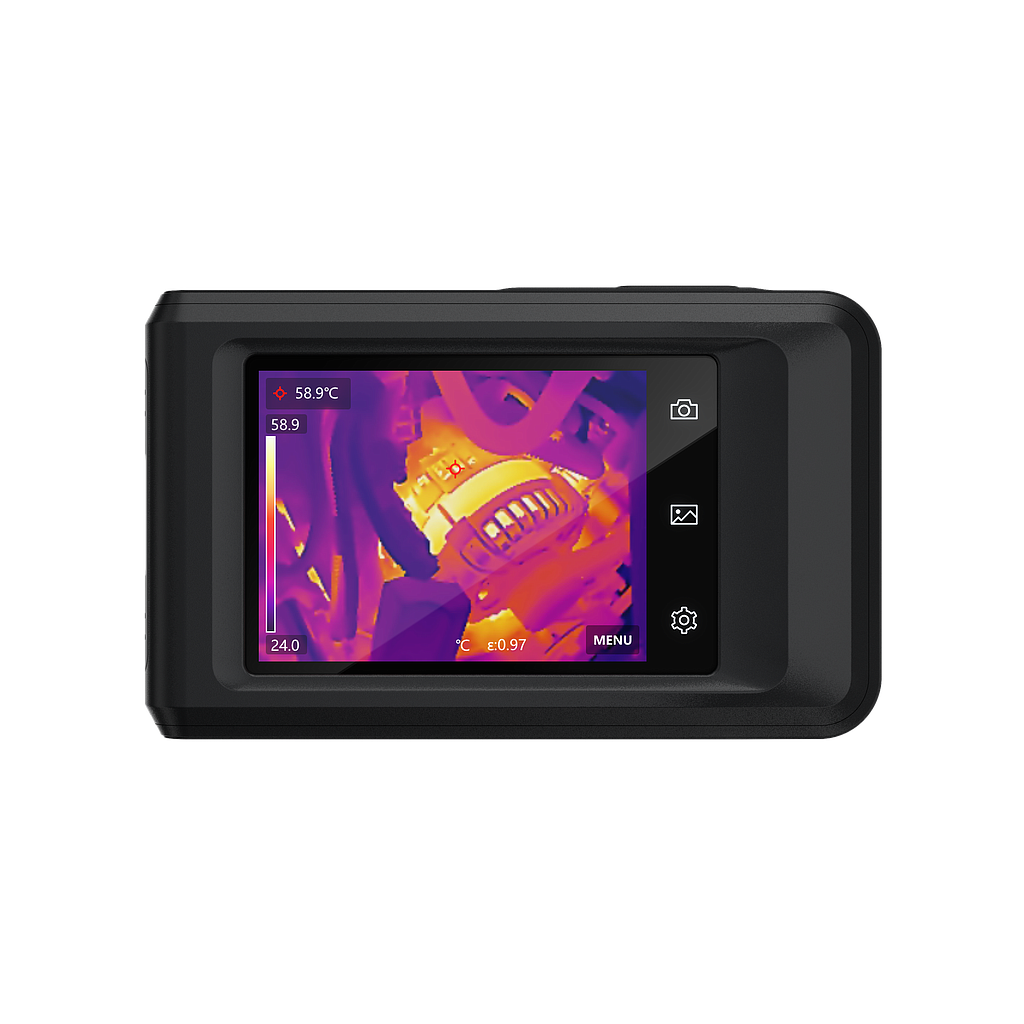

HIKMICRO PocketE Pocket Thermography Camera (96x96px; -20~350°C)

Infrared Image

IR Resolution: 96 × 96 (9, 216 pixels)

SuperIR: 240 x 240 (57,600 pixels)

NETD: < 50 mK (@ 25 °C, F#=1.0)

Image Frequency: 25 Hz

Detector Pitch: 12 μm

Spectral Range: 7.5 to 14 μm

Focal Length: 1.35 mm

F-number: F1.0

Field of View (FOV): 50° × 50°

Spatial Resolution (IFOV): 8.89 mrad

Focus Mode: Focus Free

Distance to Spot Ratio (D:S): 112:1

Min. Focus Distance: 0.1 m (0.33 ft)

Image Display

Visual Camera: 640× 480 (0.3 MP)

Display: 320 × 240 Resolution, 3.5" LCD Touch Screen with auto-rotation

Screen Brightness: Manual

Digital Zoom: 1.0x to 4.0x continuous

Image Modes: Thermal/Visual/Fusion/PIP/Blending

Color Palettes: White Hot, Black Hot, Rainbow, Ironbow, Red Hot, Fusion, Rain, Blue Red

Measurement and Analysis

Object Temperature Range:-20°C to 350°C ( -4°F to 662°F )

Accuracy: Max (±2°C/3.6°F, ±2%) at ambient temperature 25°C (77°F) and object temperature above 0°C (32°F)

Measurement Tools: Center Spot, Hot Spot, Cold Spot

Level and Span Mode: Auto/Manual/1-Tap Touch-screen

Data Storage and Communication

Storage Media: Built-in 4 GB flash memory

Image Storage Capacity: Approx. 30,000 Images

Annotations: Text note: max. 200 characters

Video Storage Capacity: Approx. 20 hours

Video File Format: MP4 video

General

Wi-Fi: 802.11 b/g/n ( 2.4 GHz )

USB Interface: USB Type-C

LED Light: Yes

Battery Type: Rechargeable Li-ion battery

Battery Operating Time: Approx. 4 hours

Battery Charging Time: Approx. 2.5 hours fully charged

Protection level: IP54

Drop Test Height: 2 m (6.56 ft)

Working Temperature Range: -10°C to 50°C (14°F to 122°F)

Storage Temperature Range: -20°C to 60°C (-4°F to 140°F)

Relative Humidity: < 95% non-condensing

Weight: Approx. 218 g (0.481 lb)

Dimension: 138.45 × 85.2 × 23.6 mm (5.45 × 3.35 × 0.93 in)

Tripod Mounting: UNC ¼”-20
