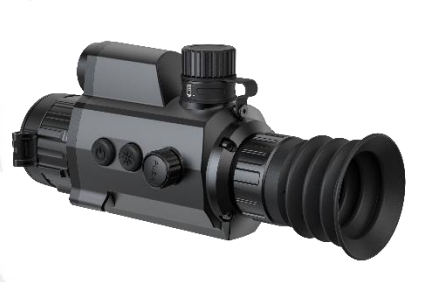

HIKMICRO PH35L ຂອບເຂດຮູບພາບຄວາມຮ້ອນ (384 × 288 pixel)
Thermal Module
Image Sensor: Uncooled Focal Plane Array
Max. Resolution: 384 × 288
Frame Rate: 50 Hz
Pixel Interval: 12 μm
Response Waveband: 8 μm to 14 μm
NETD: < 35 mK (25°C, F# = 1.0)
Lens (Focal Length): 35 mm
Detection Range: 1800 m
Field of View: 7.53° × 5.65°
Min. Focusing Distance: 2 m
Aperture: F1.0
Magnification: 3.03×
Image Display
Display: 1024 × 768, 0.39 inch, OLED
Image: Mode Black Hot, White Hot, Red Hot, Fusion
FFC (Flat Field Correction): Mode Auto, Manual, External Correction
Exit Pupil: 6 mm
Eye Relief: 45 mm
Diopter (Range): -5 D to 3 D
Power Supply
Battery Type: One Rechargeable Lithium battery
Battery Operating Time: 6 hours continuous running (@25°C, Wi-Fi and CVBS off)
Battery Capacity Display: Yes
Anti-reverse Battery Connection: Yes
Overvoltage Protection: Yes
Type-C Power Supply: 5 V DC/2 A, USB Type-C interface3, Supports external power supply
General
Work Temperature/Humidity: -30°C to 55°C (-22°F to 131°F)
Protection Level: IP67
Dimension: 200.38 × 66.32 × 87.10 mm (7.89 × 2.61 × 3.43 inch)
Weight: < 518 g without eyepiece and batteries
Port: Type-C
Laser Rangefinder
Safety Class for Laser: Class 1
Wavelength: 905 nm
Max. Measuring Range: 600 m
Measurement Accuracy: ± 1 m
Min. Measuring Range: 10 m
