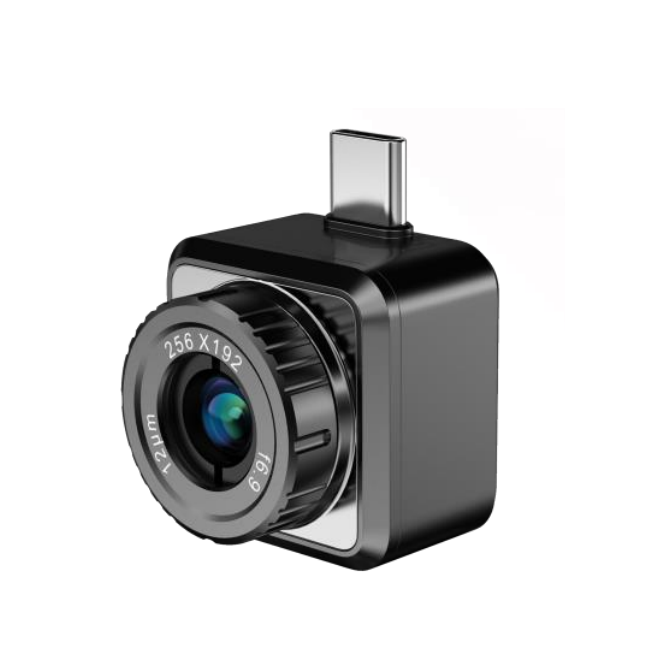

HIKMICRO Mini2 Plus ໂມດູນໂທລະສັບສະຫຼາດ (256 x 192piexels; -20°C ~ 350°C,Type-C,Androi)
THAY THẾ BẰNG HIKMICRO Mini2 Plus V2
Infrared Image
IR Resolution: 256 × 192 (49.152 pixels)
NETD: < 40 mK (@ 25°C, F#=1.0)
Image Frequency: 25 Hz
Detector Pitch: 12 μm
Spectral Range: 7.5 to 14 μm
Focal Length: 6.9 mm
F-number: F1.0
Field of View (FOV): 25° × 18.8°
Min. Focus Distance: 0.1 m (0.33 ft)
Focus Mode: Focus Free
Image Display
Color Palettes: White Hot, Black Hot, Rainbow, Ironbow, Sepia, Color, Ice Fire, Rain, Red Hot, Green Hot, Dark Blue, Combined
Image Modes: Thermal/Fusion
Measurement and Analysis
Object Temperature Range: -20°C to 350°C(-4°F to 662°F)
Accuracy: Max. (± 2°C/3.6°F, ± 2%), for ambient temperature 15°C to 35°C (59°F to 95°F) and object temperature above 0°C (32°F)
Measurement Tools: Center Spot, Hot Spot, Cold Spot; User-definable: 3 spots, and 3 rectangles.
Level and Span Mode: Auto/Manual
General
Power Consumption: 360 mW
Protection Level: IP40
Drop Test Height: 1 m (3.28 ft)
Working Temperature Range: -10°C to 50°C (14°F to 122°F )
Storage Temperature Range: -20°C to 60°C (-4°F to 140°F )
Weight: Approx. 24 g (0.053 lb)
Dimension: 26.6 × 26.6 × 25 mm (1.05 × 1.05 × 0.98 in)
