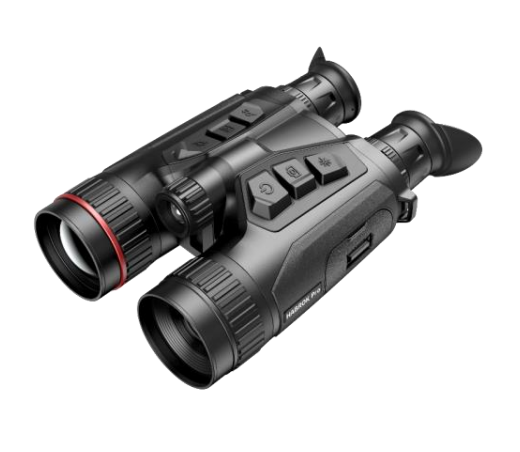

HIKMICRO HQ50LN ກ້ອງສ່ອງທາງໄກຫຼາຍສະເປັກຕຣຳ (640 × 512)
Thermal Module
Image Sensor: VOx Uncooled Focal Plane Arrays
Max. Resolution: 640 × 512
Frame Rate: 50 Hz
Pixel Interval: 12 μm
Response Waveband: 8 μm to 14 μm
NETD: Less than 15 mK (@25°C), F# = 1.0
Lens (Focal Length): 50 mm, F1.0
Focus Mode: Focus Ring
Detection Range: 2600 m
Min. Focusing Distance: 5 m
Magnification: 4.3× to 20.0× (4.6×)
Field of View (H × V), Degrees / m @100 m: 8.8° × 5.3° / 15.4 m × 9.3 m
Optical Module
Image Sensor: 1/1.8" Progressive Scan CMOS
Max. Resolution: 3840 × 2160
Focal Length: 60 mm, F2.2
Min. Working Distance: 3 m
Focus Mode: Focus Ring
Magnification: 5.5× to 22.0× (4×)
Field of View (H × V), Degrees / m @100 m: 7.3° × 4.1° / 12.6 m × 7.2 m
Smart IR: Yes
IR Illuminator Wavelength: 940 nm
Viewing Range at Night: 350 m
Replaceable IR Illuminator: Yes
Image Display
Display: 0.49 inch, OLED, 1920 × 1080
Palettes: Thermal: Black Hot, White Hot, Red Hot, Fusion; Optical: Day, Night, Auto
FFC (Flat Field Correction) Mode: Auto, Manual, External Correction
Exit Pupil: 8 mm
Eye Relief: 15 mm
Diopter (Range): -5 D to +3 D
Brightness Adjustment: Yes
Tone Adjustment: Cold, Warm
Contrast Adjustment: Yes
Zoom Pro: Yes
Image Pro 2.0: Yes
System
Record Video: Yes
Capture Snapshot: Yes
Audio Recording: Yes
Standby Mode: Yes
Storage: Built-in EMMC (64 GB)
PIP: Yes
Hotspot: Yes
Hot Track: Yes
Digital Magnetic Compass: Yes
GPS: Yes
Local Album: Yes
Power Supply
Battery Type: Replaceable and Rechargeable Li-ion Battery Pack
Battery Operating Time: 10.5 h (25°C, with hotspot off, LRF and Zoom Pro on)
Type-C Power Supply: 5 V / 9 V DC, 3 A
External Power Supply: Supports External Power Supply, Supports Direct Charging
General
Protection Level: IP67
Dimension: 142.9 mm × 79.7 mm × 230.5 mm (5.6" × 3.1" × 9.1")
Weight: 975 g with Battery Pack
Working Temperature: -30°C to +55°C
Interpupillary Adjustment Range: 60 mm to 74 mm
Mounting Adapter: 1/4"-20 UNC
Laser Rangefinder
Safety Class for Laser: Class 1
Wavelength: 905 nm
Max. Measuring Range: 1000 m
Measurement Accuracy: ±1 m
Min. Measuring Range: 10 m
