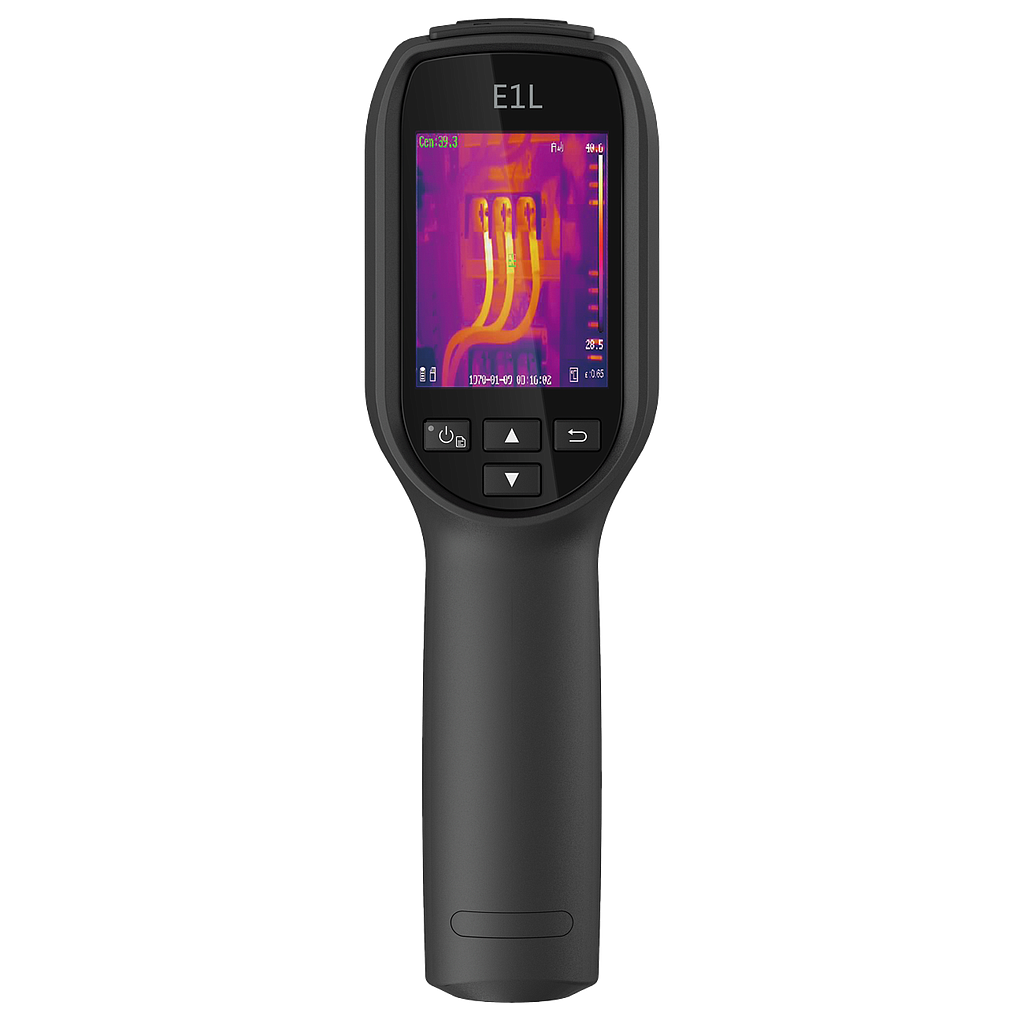

HIKMICRO HM-TP31-3AUF-E1L ກ້ອງຖ່າຍຮູບເຄື່ອງຄວບຄຸມອຸນຫະພູມແບບມືຖື (-20~550°C; 160x120px)
Image sensor: Vanadium Oxide Uncooled Focal Plane Arrays
IR resolution: 160×120 (19 200 pixels)
Temperature measurement range: -20°C - 550°C (-4°F~1022°F)
Pixel pitch: 17μm
Spectrum range: 8-14μm
NETD < 40mK (@25°C, F#=1.0)
3mm lens
Thermographic accuracy: ±2℃ / ±2%
Focal length: 3.1 mm
FOV (Field of View): 37.2°×50°
Minimum focus distance: 0.15 m (0.49 ft)
Focus: Fixed
Image frequency: 25Hz
Aperture: F1.1
Display: 320 × 240 Resolution, 2.4’’ LCD Screen
Storage
Storage media: Removable Micro SD Card (8 GB)
Image storage capacity: 150 000 Images
Image file format: JPEG with Measurement Data Included
Power System
Power supply: 3.7 V DC/0.4 A
Power consumption: 1.2 W
Battery type: Rechargeable Li-ion Battery
Battery operating time: 8 Hours Continuous Running
General
Menu language: 17 Languages
Working temperature range: 20°C to 50°C (-4°F to 122°F)
Storage temperature range: -20°C to 60°C (-4°F to 140°F)
Protection level: IP54
Drop Test Height: 2 m (6.56 ft)
Interface: Micro USB
Weight: Approx. 350 g (0.77 lb)
Dimension: 196 mm × 117 mm × 59 mm (7.7"×4.6"×2.3")
