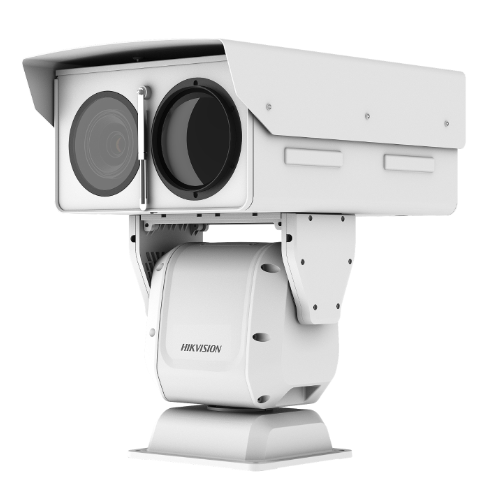

HIKMICRO DS-2TD8166-75C2F/V2 Thermal & Optical Bi-spectrum Network Stable ກ້ອງ PTZ (640×512 pixel, -20°C~150°C)
Thermal module
Image sensor: Vanadium Oxide Uncooled Focal Plane Arrays
Max. Resolution: 640 × 512
Detector Pitch: 17μm
Response waveband: 8μm to 14μm
NETD: < 40mk (@25°C,F#=1.0)
Lens (focal length): 75 mm
MRAD: 0.23 mrad
Field of View: 8.3° × 6.64°
Min. Focusing Distance: 8 m
F number: 1.0
Optical camera
Image Sensor: 1/2.8” Progressive Scan CMOS
Min. Illumination: Color : 0.05Lux @ (F1.8, AGC ON) B/W : 0.01Lux @ (F1.8, AGC ON)
Focal Length: 6.7-330mm, 49x
Digital Zoom: 16 X
Field of View: 41.3° to 1.2° (Wide-Tele)
Min. Working Distance: 10-1500mm(Wide-Tele)
Aperture Range: F1.8-F6.1
Focus Mode: Auto / Semiautomatic / Manual
WDR: Digital
Smart function
VCA: Support 4 VCA rule types (Line Crossing, Intrusion, Region Entrance, and Region Exiting), 10 scenes and 8 VCA rules for each scene.
Temperature Measurement: Support 3 temperature measurement rule types, 273 presets as scene, 21 rules of each scene (10 points, 10 areas, and 1 line)
Temperature range: -20 °C to 150 °C (-4 °C to 302 °F)
Temperature accuracy: ± 8 °C (14.4 °F)
Fire detection: Support 10 fire points
General
Menu: English
Wiper: Yes
Power: 48V DC/5A, 220W
Work Temperature/Humidity: From -40°C to 60°C (-40°F to 140°F); Humidity: 90% or Less
Protection Level: IP66 Standard; TVS 6000V Lightning Protection, Surge Protection and Voltage Transient Protection
Dimension: 559.2 mm × 380 mm × 239.8 mm (22.02 ‘’ × 14.96 ‘’ × 9.44 ‘’)
Weight: Approx. 42kg (92.6 lb)
