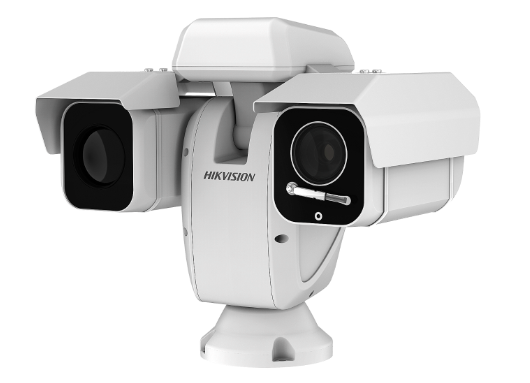

HIKMICRO DS-2TD6236-50H2L/V2 Thermal & Optical Bi-spectrum Network Stable ກ້ອງ PTZ (384 × 288 pixel, -20°C~150°C)
Thermal module
Image sensor: Vanadium Oxide Uncooled Focal Plane Arrays
Max. Resolution: 384 × 288
Detector Pitch: 17μm
Response waveband: 8μm to 14μm
NETD: < 40mk(@25°C,F#=1.0)
Lens (focal length): 50 mm
MRAD: 0.34 mrad
Field of View: 7.47° × 5.61°
Min. Focusing Distance: 7.5 m
F number: 1.0
Optical camera
Image Sensor: 1/1.9’’ Progressive Scan CMOS
Min. Illumination: Color: 0.002 lux @ (F1.5 , AGC On ) B/W : 0.0002 lux @ (F1.5 , AGC On )
Focal Length: 5.7-205.2mm, 36x
Digital Zoom: 16 X
Field of View: 58.7° - 2.0° (Wide-Tele)
Min. Working Distance: 10-1500mm (Wide-Tele)
Aperture Range: F1.5-F4.5
Focus Mode: Auto / Semiautomatic / Manual
WDR: 120dB
Smart function
VCA: Support 4 VCA rule types (Line Crossing, Intrusion, Region Entrance, and Region Exiting), 10 scenes and 8 VCA rules for each scene.
Temperature Measurement: Support 3 temperature measurement rule types, 273 presets as scene, 21 rules of each scene (10 points, 10 areas, and 1 line)
Temperature range: -20 °C to 150 °C (-4 °C to 302 °F)
Temperature accuracy: ± 8 °C (14.4 °F)
Fire detection: Support 10 fire points
General
Menu: English
Wiper: Yes
Power : 24V AC, 120W
Work Temperature/Humidity: From -40°C to 60°C (-40°F to 140°F); Humidity: 90% or Less
Protection: Level IP66 Standard; TVS 6000V Lightning Protection, Surge Protection and Voltage Transient Protection
Dimensions: 486.1 mm × 351.6 mm × 450.3 mm (19.14" × 13.84" × 17.73")
Weight: Approx. 19kg (41.89lb)
