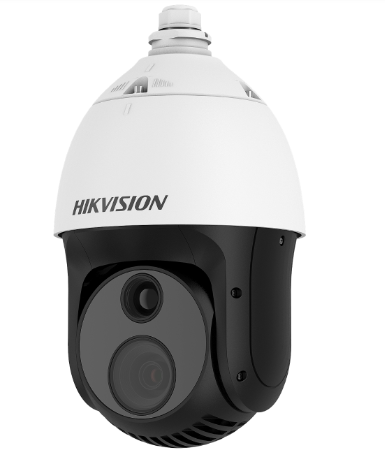

HIKMICRO DS-2TD4237-10/V2 Thermometric Thermal & Optical Bi-spectrum Network Speed Dome (384 × 288 pixel, -20~150°C)
Thermal Module
Image Sensor: Vanadium Oxide Uncooled Focal Plane Arrays
Max. Resolution: 384 × 288 (the resolution of output image is 1280 × 720)
Pixel Interva: l 17μm
Response Waveband : 8μm to 14μm
NETD: less than 40 mK (25°C), F#=1.0
Lens (Focal Length): 10 mm
IFOV: 1.7 mrad
Field of View: 37.7° × 28.7° (H × V)
Min. Focusing Distance: 1.2 m
Aperture: F1.0
Optical Module
Image Sensor : 1/2.8" Progressive Scan CMOS
Max. Image Resolution: 1920 × 1080
Min. Illumination: Color: 0.05 Lux @(F1.2,AGC ON), B/W: 0.01 Lux @(F1.2, AGC ON)
Lens (Focal Length): 4.8-153mm
Field of View: horizontal FOV 58.4° to 2.14°, vertical FOV 33.8° to 1.2°, diagonal FOV 65.6° to 2.46°
Aperture Range: F1.2-F4.4
Focus Mode: Auto / Semiautomatic / Manual
WDR: 120 dB
Smart Function
VCA (Video Content Analysis): 4 VCA rule types (Line Crossing, Intrusion, Region Entrance, and Region Exiting), up to 8 VCA rules.
Temperature Measurement: 3 temperature measurement rule types, 21 rules (10 points, 10 areas, and 1 line).
Temperature Range: -20 °C to +150 °C (-4 °F to +302°F)
Temperature Accuracy: ± 8 °C (± 14.4 °F)
Fire detection: Dynamic fire point detection, up to 10 fire points detectable.
Infrared
IR Distance: Up to 100 m
IR Intensity and Angle: Auto Adjust
General
Menu language: English
Power: 24 V AC± 25%
Power Consumption: 30W
Working Temperature/Humidity: -30 °C to 60 °C (-22 °F to 140 °F), 90% or less
Protection Level: IP66 Standard, TVS 6000V Lightning protection, surge protection, voltage transient protection
Dimensions: 305 mm × 185 mm × 163 mm (12.01 " × 7.28" × 6.42 ")
Weight : 3.9Kg (8.6lb)
