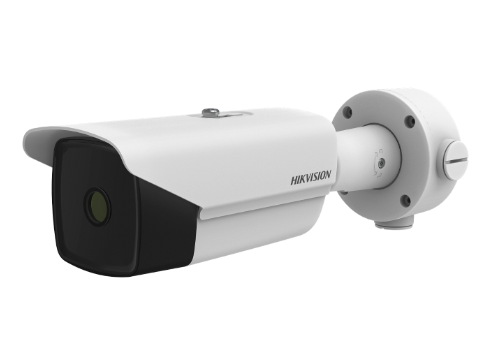

HIKMICRO DS-2TD2137-10/P Thermal Network Bullet Camera (384 × 288 pixel, -20~150°C)
Thermal Module
Image Sensor: Vanadium Oxide Uncooled Focal Plane Arrays
Resolution: 384 × 288
Pixel Interval: 17 μm
Response Waveband: 8 μm to 14 μm
NETD (Noise Equivalent Temperature Difference): ≤ 35 mk (25 °C,F#=1.0)
Focal Length: 9.7 mm
IFOV: 1.75 mrad
Field of View: 37.5° × 28.5° (H × V)
Min. Focusing Distance: 1 m
Aperture: F 1.0
Digital Zoom: ×2, ×4, ×8
Image Effect
Target Coloration: Yes. Supported in white hot and black hot mode.
Smart Function
VCA (Video Content Analysis): 4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8 VCA rules in total.
Temperature Measurement: 3 temperature measurement rule types, 21 rules in total (10 points, 10 areas, and 1 line).
Temperature Range: -20 °C to 150 °C (-4 °F to 302 °F)
Temperature Accuracy: ±8 °C (14.4 °F)
Fire detection: Dynamic fire detection, up to 10 fire points detectable.
General
Menu Language: 32 languages
Power: 24 VAC ± 25%, 12 VDC ± 25%, two-core terminal block PoE (802.3af, class 3)
Power Consumption: 18 VAC to 30 VAC: 0.13 A to 0.22 A, max 5 w 9 VDC to 15 VDC: 0.37 A to 0.61 A, max 5 w PoE (802.3af, class 3): 44 V to 57 V: 0.1 A to 0.13 A, max. 5.5 w
Working Temperature/Humidity: Temperature: -40 °C to 65 °C (-40 °F to 149 °F) Humidity: 90% or less
Protection Level: IP66 Standard TVS 6000V Lightning protection, surge protection, voltage transient protection
Dimension: 358.3 mm × 113.5 mm × 115.2 mm (14.10" × 4.47" × 4.53")
Weight: Approx. 1.77 kg (3.90 lb)
