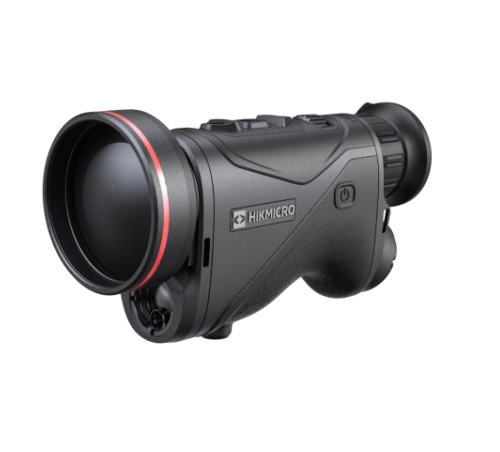

HIKMICRO CQ50L 2.0 ກ້ອງສ່ອງທາງໄກຄວາມຮ້ອນ (640 × 512, 8.7° × 7.0°)
Thermal Module
Image Sensor: VOx Uncooled Focal Plane Arrays
Max. Resolution: 640 × 512
Frame Rate: 50 Hz
Pixel Interval: 12 μm
Response Waveband: 8 μm to 14 μm
NETD: Less than 15 mK (@25°C), F#=1.0
Lens (Focal Length): 50 mm, F0.9
Focus Mode: Rear Focus Wheel
Detection Range: 2600 m
Min. Focusing Distance: 5.0 m
Magnification: 2.7× to 21.6× (8×)
Field of View (H × V), Degrees / m @100 m: 8.7° × 7.0° / 15.2 m × 12.2 m @100 m
Image Display
Display: 1920 × 1080, 0.49 inch, OLED
Palettes: Black Hot, White Hot, Red Hot, Fusion, Red Monochrome, Green Monochrome
Exit Pupil: 8 mm
Eye Relief: 15 mm
Diopter (Range): -5 D to +3 D
Brightness Adjustment: Yes
Tone Adjustment: Cold, Warm
Contrast Adjustment: Yes
Image Pro 2.0: Yes
Zoom Pro: Yes
HSIS (HIKMICRO Shutterless Image System): Yes
System
Record Video: Yes
Capture Snapshot: Yes
Audio Recording: Yes
Standby Mode: Yes
Storage: Built-in Module (64 GB)
PIP: Yes
Hotspot: 2.4/5 G WiFi Waveband
Hot Track: Yes
Distance Measurement: Yes
Local Album: Yes
Power Supply
Battery Type: Replaceable and Rechargeable 21700 Battery
Battery Operating Time: ≥6.5 h (@25°C, WiFi, Zoom Pro, LRF on)
Type-C Power Supply: 5 V DC, 2 A
External Power Supply: Supports External Power Supply, Support Direct Charging
General
Protection Level: IP67
Dimension: 193 mm × 71.5 mm × 93.3 mm
Working Temperature: From -30°C to 55°C (-22°F to 131°F); Humidity: 90% or Less
Weight: 537 g with Battery
Laser Rangefinder
Safety Class for Laser: Class 1
Wavelength: 905 nm
Max. Measuring Range: 1000 m
Measurement Accuracy: ±1 m
Min. Measuring Range: 10 m
