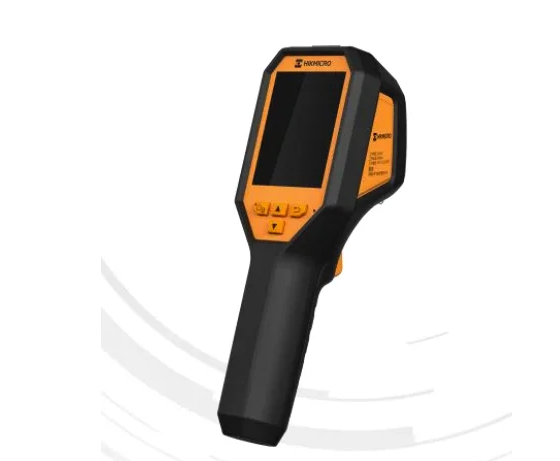

HIKMICRO BX20 ກ້ອງຖ່າຍຮູບຄວາມຮ້ອນປ້ອງກັນລະເບີດ (256 × 192; -20°C - 550°C; 3.3 mrad)
- Infrared Image
IR Resolution: 256 × 192 (49,152 pixels)
NETD: < 40 mK (@ 25°C, F#=1.0)
Image Frequency: 25 Hz
Detector Pitch: 12 μm
Spectral Range: 7.5 to 14 μm
Focal Length: 3.6 mm
F-number: F1.0
Field of View (FOV): 37.2° × 50.0°
Spatial Resolution (IFOV): 3.3 mrad
Min. Focus Distance: 0.3 m (0.98 ft)
Focus Mode: Focus Free
- Image Display
Visual Camera: 1600 × 1200 (2 MP)
Display: 240 × 320 Resolution, 3.2”LCD Screen
Color Palettes: White Hot, Black Hot, Rainbow, Ironbow
Color Alarm: Above alarm
Image Modes: Thermal/Visual/Fusion/PIP
- Measurement and Analysis
Object Temperature Range: -20°C to 550°C (-4°F to 1022°F)
Accuracy: Max. (± 2°C/3.6°F, ± 2%), for ambient temperature 15°C to 35°C (59°F to 95°F) and object temperature above 0°C (32°F)
Measurement Tools: Center Spot, Hot Spot, Cold Spot; User-definable: 3 spots
Level and Span Mode: Auto/Manual
- Data Storage and Communication
Storage Media: Built-in 16 GB flash memory
Image Storage Capacity: Approx. 90,000 Images
- General
Explosion-Proof Protection: ATEX: II 3 G Ex ic IIC T6 Gc; IECEx: Ex ic IIC T6 Gc
LED Light: Yes
USB Interface: USB Type-C
Battery Type: Rechargeable Li-ion battery
Battery Operating Time: Approx. 6 hours
Battery Charging Time: Approx. 3 hours fully charged
Drop Test Height: 2 m (6.56 ft)
Protection Level: IP54
Working Temperature Range: -10°C to 50°C (14°F to 122°F)
Storage Temperature Range: -20°C to 60°C (-4°F to 140°F)
Relative Humidity: < 95% non-condensing
Dimension: 221.7 mm × 73.5 mm × 123.8 mm (8.73’’ × 2.89’’ × 4.87’’)
Weight: Approx. 380 g (0.84 lb)
