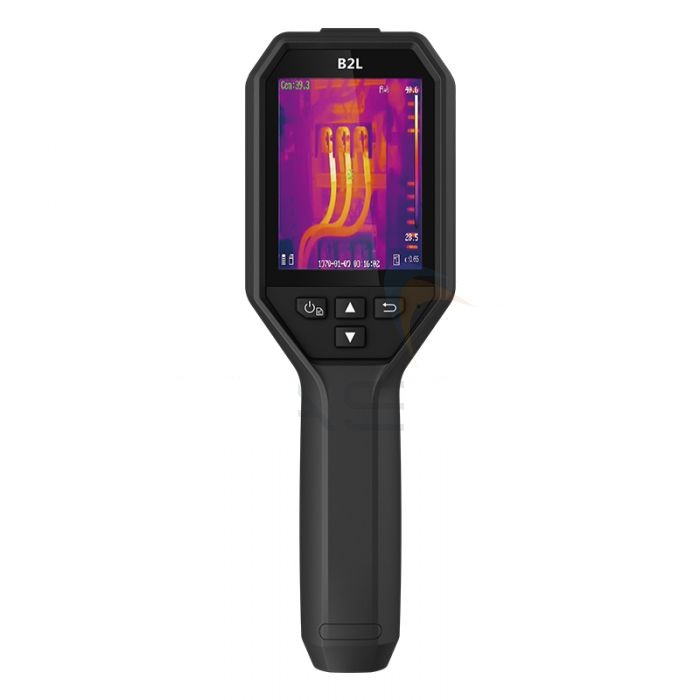

Image sensor: Vanadium Oxide Uncooled Focal Plane Arrays
IR resolution: 256 x 192 (49 152 pixels)
Temperature measurement range: -20°C - 550°C (-4°F~1022°F)
Pixel pitch: 12μm
Spectrum range: 8-14μm
NETD < 40mK (@25°C, F#=1.0)
3mm lens
Thermographic accuracy: ±2℃ / ±2%
Focal length: 3.6mm
FOV (Field of View): 37.2°×50°
Minimum focus distance: 0.3 m (0.98 ft)
Focus: Fixed
IFOV (Spatial Resolution): 3.3 mrad
Image frequency: 25Hz
Aperture: F1.0
Display: 320 × 240 Resolution, 3.2’’ LCD Screen
Storage
Storage media: EMMC (4 GB)
Image storage capacity: 30 000 Images
Image file format: JEPG with Measurement Data Included
Power System
Power supply: 3.7 V DC/0.4 A
Power consumption: 1.5 W
Battery type: Rechargeable Li-ion Battery
Battery operating time: 8 Hours Continuous Running
Battery charging time: 3 Hours
General
Menu language: 21 Languages
Working temperature range: -10°C~50°C (14°F~122°F)
Storage temperature range: -20°C~60°C (-4°F~140°F)
Protection level: IP54
Drop Test Height: 2 m (6.56 ft)
Interface: USB Type-C
Weight: Approx. 380 g (0.84 lb)
Dimension: 221.7 mm × 73.5 mm × 80.5 mm (8.73” × 2.89” × 3.17”)
Wi-Fi: 802.11 b/g/n (2.4GHz)
