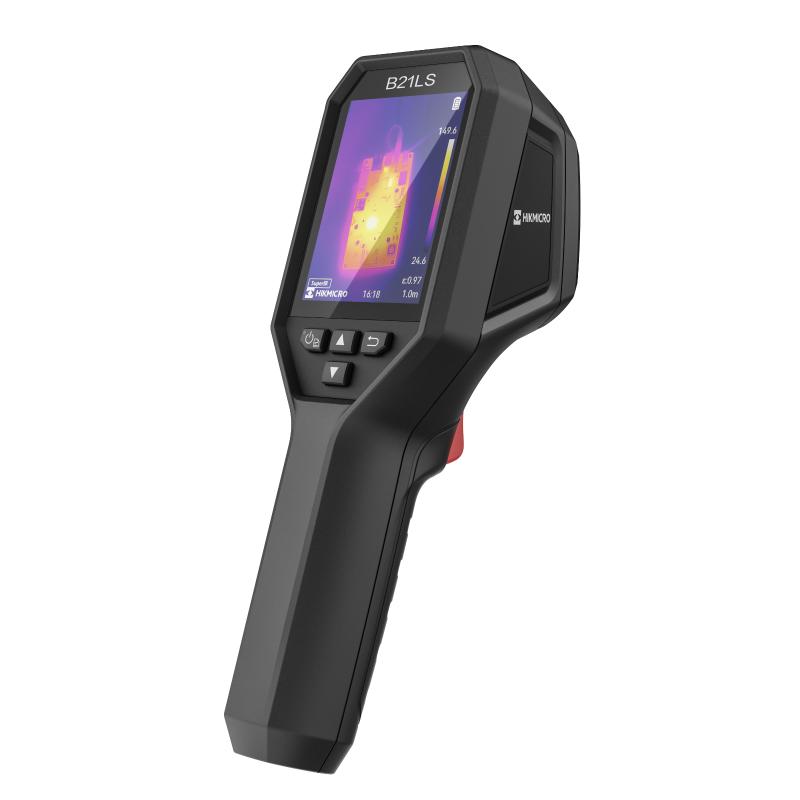

HIKMICRO B21LS ກ້ອງຖ່າຍຮູບຄວາມຮ້ອນມືຖື (-20°C to 550°C, 256 × 192 (49,152 pixel))
Infrared Image
IR Resolution: 256 × 192 (49,152 pixels)
SuperIR: Yes, on captured images and live view
NETD: < 40 mK (@ 25 °C, F#=1.0)
Image Frequency: 25 Hz
Detector Pitch: 12 μm
Spectral Range: 7.5 to 14 μm
Focal Length: 3.6 mm
F-number: F1.0
Field of View (FOV): 37.2° × 50.0°
Spatial Resolution (IFOV): 3.3 mrad
Min. Focus Distance: 0.3 m (0.98 ft)
Focus Mode: Focus Free
Image Display
Display: 480 × 640 Resolution, 3.2" LCD Screen
Color Palettes: White Hot, Black Hot, Rainbow, Ironbow, Red Hot,Fusion
Color Alarm: Above alarm
Image Modes: Thermal
Measurement and Analysis
Object Temperature Range: -20°C to 550°C (-4°F to 1022°F)
Accuracy: Max. (± 2°C/3.6°F, ± 2%), for ambient temperature 15°C to 35°C (59°F to 95°F) and object temperature above 0°C (32°F)
Measurement Tools
Center Spot, Hot Spot, Cold Spot
User-definable: 3 spots
Level and Span Mode: Auto/Manual
Data Storage and Communication
Storage Media: Built-in 16G eMMC (user available storage space is less than the nominal capacity)
Image Storage Capacity: Approx. 35,000 Images
Image File Format: Radiometric JPEG
General
Wi-Fi: 802.11 b/g/n (2.4GHz)
USB Interface: USB Type-C
Battery Type: Rechargeable Li-ion battery
Battery Operating Time: Approx. 6 hours
Battery Charging Time: Approx. 3 hours fully charged
Protection Level: IP54
Drop Test Height: 2 m (6.56 ft)
Working Temperature Range: -10°C to 50°C (14°F to 122°F)
Storage Temperature Range: -20°C to 60°C (-4°F to 140°F)
Relative Humidity: < 95% non-condensing
Weight: Approx. 380 g (0.84 lb)
Dimension: 221.7 × 73.5 × 123.8 mm (8.73 × 2.89 × 4.87 in)
Power Supply: USB-C (5V/2A)
Tripod Mounting: UNC ¼”-20
Laser: Yes, Class II
